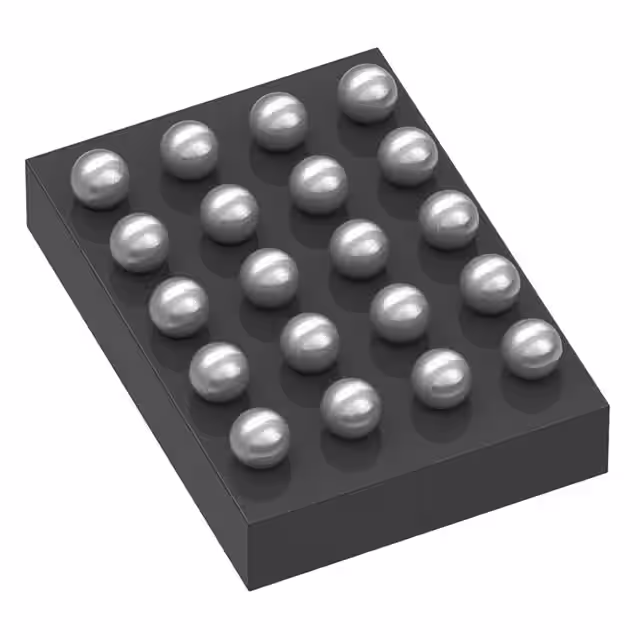

FPF2283CUCX

Manufacturer :

onsemi

Product Category :

Power Distribution Switches, Load Drivers

Output Peak Current Limit-Nom :

7A

Terminal Pitch :

0.4mm

Supply Voltage-Min (Vsup) :

2.8V

Number of Outputs :

1

Rds On (Typ) :

7.5m Ω

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

yes

Feature :

Auto Restart

Number of Terminations :

20

Operating Temperature :

150°C TJ

Fault Protection :

Over Temperature, Over Voltage, Short Circuit, UVLO

Switch Type :

GENERAL PURPOSE

Supply Voltage1-Min :

3V

Output Type :

N-Channel

Supply Voltage1-Nom :

3.3V

JESD-609 Code :

e1

Reach Compliance Code :

Compliant

Number of Functions :

1

Voltage - Load :

2.8V~23V

Terminal Position :

BOTTOM

Length :

2.2mm

Surface Mount :

yes

Current - Output (Max) :

7A

Ratio - Input:Output :

1:1

Supply Voltage1-Max :

5.5V

Output Current Flow Direction :

SINK

Supply Voltage :

5V

Package / Case :

20-UFBGA, WLCSP

Factory Lead Time :

4 Weeks

Built-in Protections :

OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

Voltage - Supply (Vcc/Vdd) :

Not Required

Interface :

I2C, Logic

JESD-30 Code :

R-PBGA-B20

Terminal Form :

Ball

Packaging :

Tape and Reel (TR)

Input Type :

Non-Inverting

Supply Voltage-Max (Vsup) :

23V

Output Configuration :

High Side

Mounting Type :

Surface Mount
