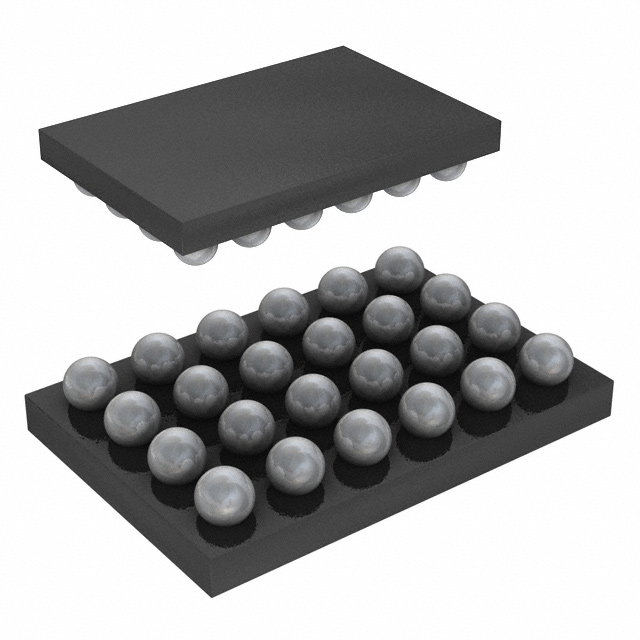

FPF2895CUCX

Manufacturer :

onsemi

Product Category :

Power Distribution Switches, Load Drivers

Rds On (Typ) :

27m Ω

Package / Case :

24-UFBGA, WLCSP

Ratio - Input:Output :

1:1

Built-in Protections :

OVER CURRENT; THERMAL; OVER VOLTAGE; UNDER VOLTAGE; TRANSIENT

JESD-30 Code :

R-PBGA-B24

Supply Voltage-Min (Vsup) :

4V

JESD-609 Code :

e1

Output Peak Current Limit-Nom :

3A

Packaging :

Tape and Reel (TR)

Factory Lead Time :

5 Weeks

Feature :

Auto Restart, Status Flag

Switch Type :

GENERAL PURPOSE

Output Current Flow Direction :

SINK

Published :

2017

Supply Voltage-Max (Vsup) :

22V

Terminal Pitch :

0.4mm

Terminal Position :

BOTTOM

Number of Functions :

1

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Number of Outputs :

1

Terminal Form :

Ball

Operating Temperature :

-40°C~85°C TA

Surface Mount :

yes

Voltage - Supply (Vcc/Vdd) :

Not Required

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Terminations :

24

Interface :

On/Off

Pbfree Code :

yes

Output Configuration :

High Side

Supply Voltage :

5V

Mounting Type :

Surface Mount

Output Type :

N-Channel

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Voltage - Load :

4V~22V

RoHS Status :

ROHS3 Compliant

Length :

2.6mm

Current - Output (Max) :

5A

Fault Protection :

Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Current, UVLO
