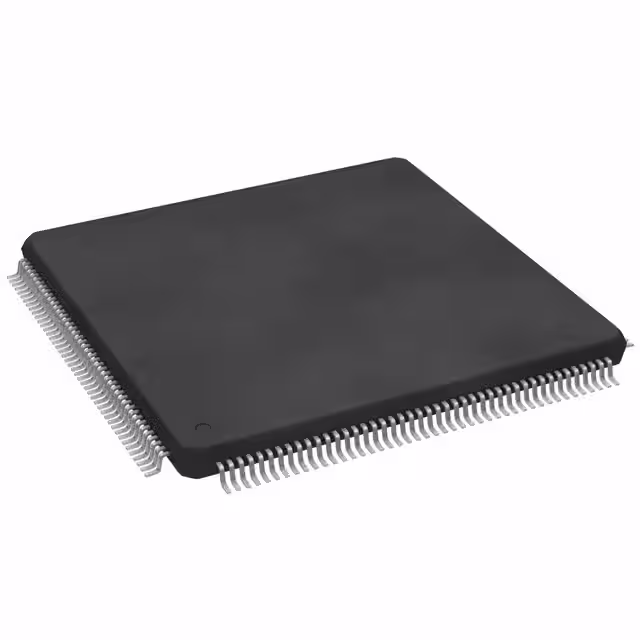

FS32K148URT0VLUT

Manufacturer :

NXP Semiconductors

Product Category :

Microcontrollers

Program Memory Size :

2MB 2M x 8

Mounting Type :

Surface Mount

Has ADC :

yes

Core Size :

32-Bit

Peripherals :

I2S, POR, PWM, WDT

PWM Channels :

yes

Width :

24mm

EEPROM Size :

4K x 8

Reach Compliance Code :

Compliant

Supply Voltage :

5V

Voltage - Supply (Vcc/Vdd) :

2.7V~5.5V

Supply Voltage-Max (Vsup) :

5.5V

DMA Channels :

yes

Number of I/O :

156

Supply Voltage-Min (Vsup) :

2.7V

uPs/uCs/Peripheral ICs Type :

MICROCONTROLLER, RISC

Peak Reflow Temperature (Cel) :

260

Length :

24mm

RAM Size :

256K x 8

Core Processor :

ARM® Cortex®-M4F

Terminal Form :

Gull wing

Terminal Position :

QUAD

Terminal Pitch :

0.5mm

Number of Terminations :

176

Factory Lead Time :

16 Weeks

Time@Peak Reflow Temperature-Max (s) :

40

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Packaging :

Tray

Package / Case :

176-LQFP

Bit Size :

32

Connectivity :

CANbus, Ethernet, FlexIO, I2C, LINbus, SPI, UART/USART

Oscillator Type :

Internal

Clock Frequency :

40MHz

Operating Temperature :

-40°C~105°C TA

Program Memory Type :

Flash

RoHS Status :

RoHS Compliant

Series :

S32K

Data Converter :

A/D 32x12b; D/A 1x8b

Surface Mount :

yes

Speed :

112MHz
