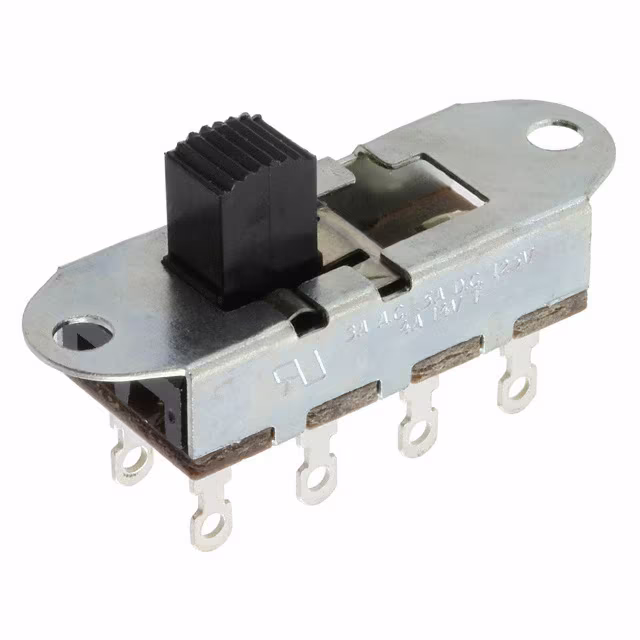

G-328S-0044

Manufacturer :

CW Industries

Product Category :

Mounting Feature :

THROUGH HOLE-STRAIGHT

Actuator Material :

Nylon

Number of Positions :

3

Electrical Life :

10000 Cycle(s)

Actuator Length :

0.344 inch

Termination Type :

Wire Wrap

Manufacturer :

CW Industries

Actuator Type :

Slide

Housing Material :

COLD ROLLED STEEL

PCB Hole Count :

8

Body Length or Diameter :

27.94 mm

Contact Current(DC)-Max :

0.5 A

Contact Function :

On-On-On

Surface Mount :

No

Terminal Length :

0.312 inch

Switch Function :

DP3T

Contact Voltage(DC)-Max :

125 V

Body Height :

8.128 mm

Body Breadth :

13.97 mm

Reach Compliance Code :

Compliant

Contact Resistance :

0.01 mΩ

Switch Type :

SLIDE SWITCH

Terminal Material :

Copper

Contact Current(AC)-Max :

3 A

Contact Voltage(AC)-Max :

125 V

Actuator Color :

Black
