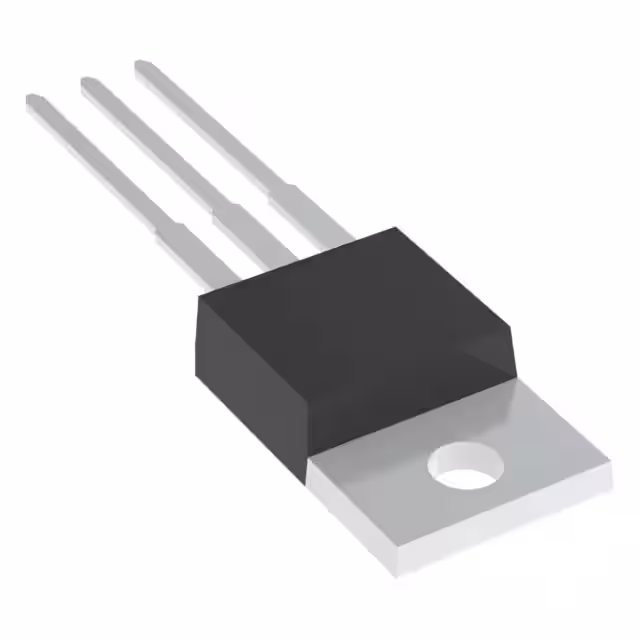

G20H100CTW
Or copy the link below:
- Mfr.Part #
- G20H100CTW
- Manufacturer
- Diodes Incorporated
- Package / Case
- TO-220-3 Full Pack
- Datasheet
- Download
- Description
- TRENCH SCHOTTKY RECTIFIER GEN II
- Stock
- 46,622
- In Stock ：
- 46,622
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Diodes Incorporated
- Product Category :
- Diodes - Rectifiers - Arrays
- Current - Reverse Leakage @ Vr :
- 4 μA @ 100 V
- Speed :
- Fast Recovery =< 500ns, > 200mA (Io)
- Configuration :
- Dual Anode Common Cathode
- Product Category :
- Schottky Diodes and Rectifiers
- Operating Temperature - Junction :
- -55°C ~ 175°C
- Product :
- Schottky Rectifiers
- Package / Case :
- TO-220-3 Full Pack
- Mounting Type :
- Through Hole
- Product Status :
- Active
- Diode Configuration :
- 1 Pair Common Cathode
- Technology :
- Si
- RoHS :
- Details
- Brand :
- Diodes Incorporated
- Series :
- Automotive, AEC-Q101
- Vf - Forward Voltage :
- 770 mV
- Product Type :
- Schottky Diodes and Rectifiers
- Package :
- Tube
- Subcategory :
- Diodes and Rectifiers
- Diode Type :
- Schottky
- Package Type :
- JEDEC TO-220AB
- Voltage - DC Reverse (Vr) (Max) :
- 100 V
- Manufacturer :
- Diodes Incorporated
- Current - Average Rectified (Io) (per Diode) :
- 20A
- Supplier Device Package :
- TO-220AB
- Mounting Style :
- Through Hole
- Maximum Operating Temperature :
- + 175 C
- Minimum Operating Temperature :
- - 55 C
- Voltage - Forward (Vf) (Max) @ If :
- 770 mV @ 10 A
- Datasheets
- G20H100CTW
Schottky Rectifier Diode 1 Pair Common Cathode Fast Recovery =< 500ns, > 200mA (Io) -55°C ~ 175°C TO-220-3 Full Pack Through Hole
G20H100CTW Overview
G20H100CTW Features
G20H100CTW Applications
There are a lot of Diodes Incorporated
G20H100CTW applications of rectifier diode array.
- Rectifier for drives applications
- Crowbar applications
- Rectifiers for UBS
- Battery chargers
- Rectifiers in switch mode power supplies (SMPS)
- Free wheeling diode in low voltage converters
- General Rectification
