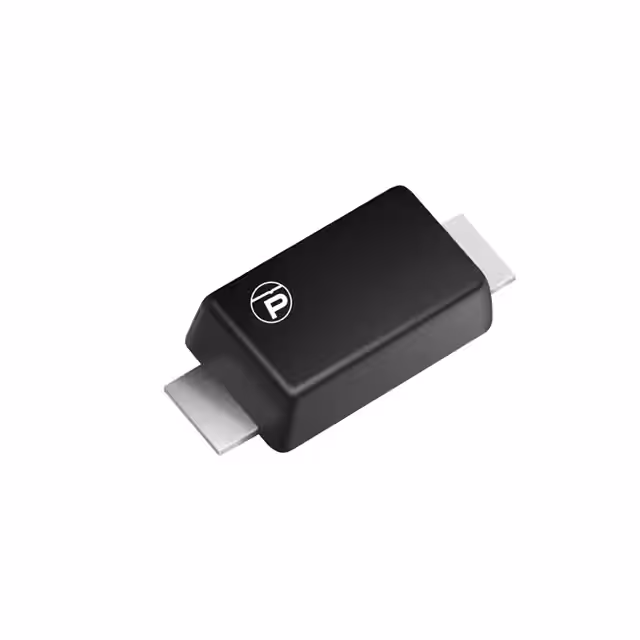

GBLC05C-LF
- Mfr.Part #
- GBLC05C-LF
- Manufacturer
- ProTek Devices
- Package / Case
- SOD-323
- Datasheet
- Download
- Description
- TVS DIODE 5VWM 9.8VC SOD323
- Stock
- 10,094
- In Stock :
- 10,094
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- ProTek Devices
- Product Category :
- Lead Free :
- Lead Free
- Product Height (mm) :
- 1(mm)
- Capacitance :
- 3 pF
- Clamping Voltage-Max :
- 18.3 V
- Test Current :
- 1 mA
- Current - Peak Pulse (10/1000μs) :
- 1A
- Rep Pk Reverse Voltage-Max :
- 5 V
- Clamping Voltage :
- 9.8
- Depth :
- 1.45 mm
- Mount :
- Surface Mount
- HTS Code :
- 8541.10.00.50
- Reverse Stand-off Voltage :
- 5 V
- Diode Element Material :
- SILICON
- Operating Temp Range :
- -55C to 150C
- Power Dissipation :
- 350 W
- Direction Type :
- Bi-Directional
- Max Operating Temperature :
- 150 °C
- JESD-609 Code :
- e3
- Capacitance Value :
- 3(TYP)
- Product Length (mm) :
- 1.9(mm)
- Terminal Position :
- Dual
- Leakage Current (Max) :
- 5uA
- Test Current (It) :
- 1 mA
- Voltage - Clamping (Max) @ Ipp :
- 9.8V
- Element Configuration :
- Single
- Min Operating Temperature :
- -55 °C
- Number of Elements :
- 1
- Surface Mount :
- yes
- Additional Feature :
- ULTRA LOW CAPACITANCE
- Mounting :
- Surface Mount
- Operating Temperature Min Deg. C :
- -55C
- RoHS Status :
- RoHS Compliant
- Working Voltage :
- 5
- Package Type :
- SOD-323
- Operating Temperature Max Deg. C :
- 150C
- Package Shape :
- RECTANGULAR
- Suppressor Type :
- TVS
- Peak Pulse Power Dissipation :
- 350 W
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Working Voltage (Max) :
- 5V
- Reverse Standoff Voltage :
- 5 V
- Configuration :
- Single
- Direction :
- Bidirectional
- Terminal Form :
- Gull wing
- Polarity :
- Bidirectional
- Subcategory :
- Transient Suppressors
- Reach Compliance Code :
- Compliant
- RoHS :
- Compliant
- Mounting Style :
- Surface Mount
- Product Depth (mm) :
- 1.45(mm)
- Diode Type :
- TRANS VOLTAGE SUPPRESSOR DIODE
- Leakage Current :
- 5
- JESD-30 Code :
- R-PDSO-G2
- Clamping Voltage (Max) :
- 9.8V
- Voltage - Breakdown (Min) :
- 6V
- Peak Pulse Power :
- 350 W
- Non-rep Peak Rev Power Dis-Max :
- 350 W
- Number of Pins :
- 2
- Breakdown Voltage-Min :
- 6 V
- Number of Terminals :
- 2
- Radiation Hardening :
- No
- Technology :
- Avalanche
- ECCN Code :
- EAR99
- Min Breakdown Voltage :
- 6 V
- Peak Pulse Current :
- 17 A
- Operating Temperature Classification :
- Military
- Reverse Breakdown Voltage :
- 6 V
- Packaging :
- Tape and Reel (TR)
- Terminal Finish :
- Tin (Sn)
- Pbfree Code :
- yes
- Length :
- 1.9 mm
- Rad Hardened :
- No
- Package / Case :
- SOD-323
- Qualification Status :
- Not Qualified
- Manufacturer :
- ProTek Devices
- Pin Count :
- 2
- Voltage - Reverse Standoff (Typ) :
- 5V
- Datasheets
- GBLC05C-LF

GBLC05C-LF-T7 datasheet pdf and Unclassified product details from ProTek Devices stock available at Xinshop
You may place an order without registering to Xinshop. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
