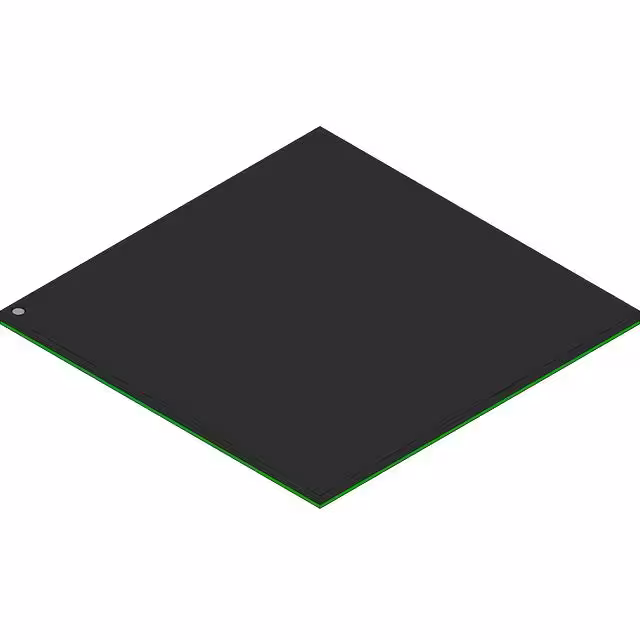

GCIXF440ACT

Manufacturer :

Altera (Intel)

Product Category :

Drivers, Receivers, Transceivers

Terminal Position :

BOTTOM

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Terminal Pitch :

1.27mm

Reach Compliance Code :

Compliant

Length :

35mm

Supply Voltage :

3.3V

Number of Terminals :

352

Qualification Status :

Not Qualified

Clock Frequency :

66.66MHz

Operating Temperature (Min) :

-40°C

External Data Bus Width :

8

Boundary Scan :

yes

HTS Code :

8542.31.00.01

Pin Count :

352

Supply Voltage-Min (Vsup) :

3V

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

RoHS Status :

Non-RoHS Compliant

Low Power Mode :

No

Supply Voltage-Max (Vsup) :

3.6V

Temperature Grade :

Industrial

Operating Temperature (Max) :

85°C

Number of Serial I/Os :

8

Surface Mount :

yes

Terminal Form :

Ball

Seated Height-Max :

1.67mm

Width :

35mm

Data Transfer Rate-Max :

12.5 MBps

Address Bus Width :

10

uPs/uCs/Peripheral ICs Type :

SERIAL IO/COMMUNICATION CONTROLLER, LAN

JESD-30 Code :

S-PBGA-B352
