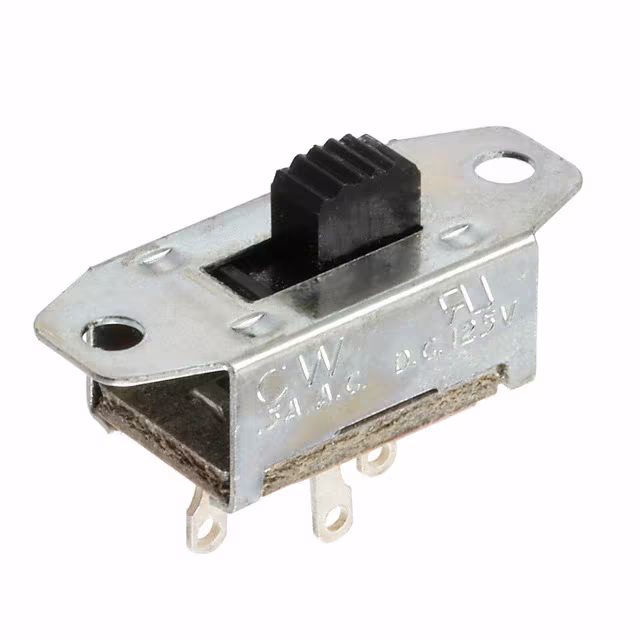

GF-124-0165

Manufacturer :

CW Industries

Product Category :

Terminal Material :

Copper

Actuator Type :

Slide

Electrical Life :

10000 Cycle(s)

Outer diameter approx. :

7.4

Contact Current(AC)-Max :

0.5 A

Stranding element :

No

Actuator Color :

Black

Mounting Feature :

THROUGH HOLE-STRAIGHT

Reach Compliance Code :

Compliant

Permitted cable outer temperature during assembling/handling :

-5 - 70

Number of Positions :

1

Actuator Length :

0.125 inch

Contact Voltage(AC)-Max :

125 V

Surface Mount :

No

Terminal Length :

0.25 inch

Switch Function :

SPDT

Screen over stranding element :

NONE

Body Length or Diameter :

15.9512 mm

Material core insulation :

Polyvinyl Chloride (PVC)

Core identification :

Colour + rings

Permitted cable outer temperature after assembling without vibration :

-40 - 70

Manufacturer :

CW Industries

Actuator Material :

Nylon

Contact Resistance :

0.01 mΩ

Body Breadth :

10.16 mm

Body Height :

7.239 mm

Contact Function :

On-On

Nominal cross section conductor :

1

Contact Current(DC)-Max :

0.5 A

Termination Type :

Solder

Low smoke (according to EN 61034-2) :

No

Colour outer sheath :

Gold

Flame retardant :

According to IEC/EN 60332-1-2

Nominal voltage U0 :

300

Housing Material :

COLD ROLLED STEEL

Contact Voltage(DC)-Max :

125 V

Min. permitted bending radius, moving application/free movement :

56

Conductor category :

Class 5 = flexible

Material outer sheath :

Polyvinyl Chloride (PVC)

Nominal voltage U :

500

Screen over stranding :

NONE
