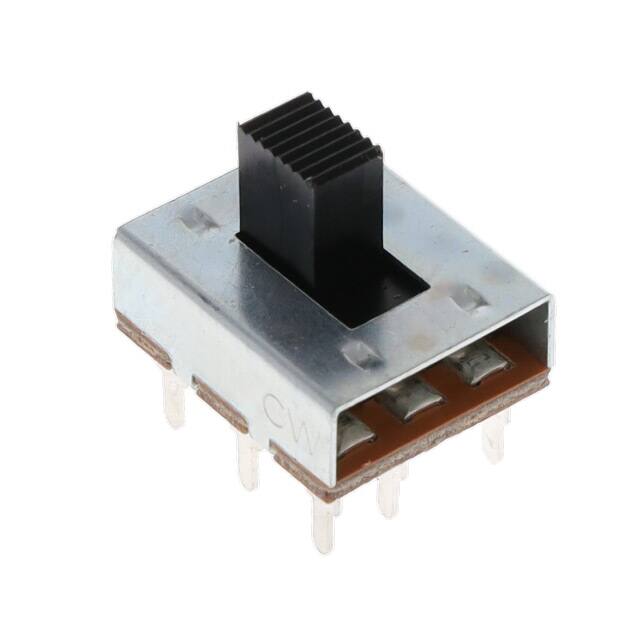

GF-661-0010
Or copy the link below:
- Mfr.Part #
- GF-661-0010
- Manufacturer
- CW Industries
- Package / Case
- Datasheet
- Download
- Description
- SWITCH SLIDE 3PDT 6A 125V
- Stock
- 500
- In Stock ：
- 500
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- CW Industries
- Product Category :
- Contact Current(DC)-Max :
- 0.5A
- Current Rating (Amps) :
- 6A AC 500mA DC
- Contact (DC) Max Rating R Load :
- .5A@125VDC
- Contact Timing :
- NOT SPECIFIED
- Mounting Type :
- Through Hole
- Mount :
- Through Hole
- Actuator Type :
- Standard
- Electrical Life :
- 6,000 Cycles
- Length - Termination :
- 0.3 inch
- Body Length or Diameter :
- 22.86mm
- Mechanical Life :
- 10,000 Cycles
- Factory Lead Time :
- 12 Weeks
- Operating Temperature :
- -10°C~104°C
- Termination :
- PC Pin
- Circuit :
- 3PDT
- Contact Finish :
- Silver
- Contact Resistance :
- 0.01mOhm
- Switch Type :
- SLIDE SWITCH
- Series :
- GF
- Actuator Color :
- Black
- Voltage - Rated DC :
- 125V
- Contact (AC) Max Rating R Load :
- 6A@125VAC
- Contact Material :
- Copper
- Number of Positions :
- 1
- Body Breadth :
- 18.14 mm
- Contact Current(AC)-Max :
- 6A
- Housing Material :
- COLD ROLLED STEEL
- Body Height :
- 8.13mm
- Actuator Length :
- 8.74mm
- RoHS Status :
- ROHS3 Compliant
- Actuator Material :
- Polyamide (PA66), Nylon 6/6
- Switch Function :
- On-On
- Current Rating :
- 6A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated AC :
- 125V
- Termination Style :
- PC Pin
- Packaging :
- Bulk
- Switch Travel :
- 4.01mm
- Datasheets
- GF-661-0010
