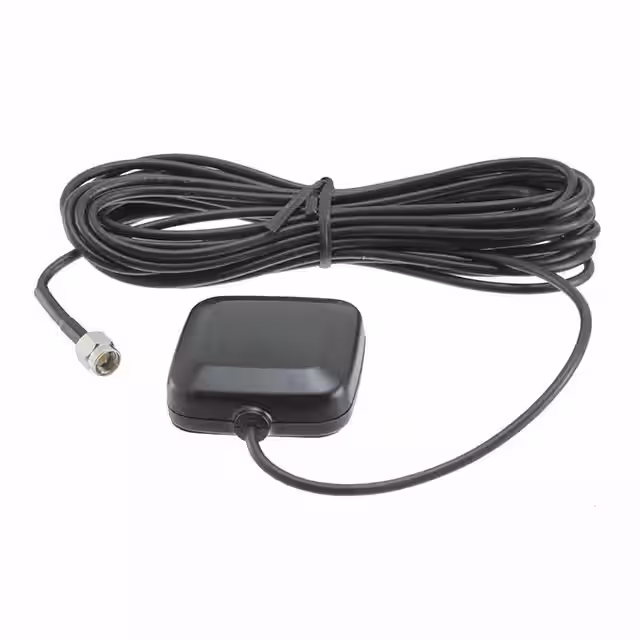

GPS0010

Manufacturer :

Pulse Electronics

Product Category :

RF Antennas

RF Family/Standard :

Navigation

Rad Hardened :

No

Mount :

Adhesive

Height :

14.6 mm

Product :

Outdoor Antennas

Subcategory :

Antennas

Applications :

GPS

RoHS :

Details

Device Core :

ARM Cortex M4

Maximum Operating Temperature :

+ 80 C

Reach Compliance Code :

Unknown

Packaging :

Bulk

Length :

45 mm

Technology :

GPS

Termination Style :

Connector

Factory Lead Time :

8 Weeks

VSWR :

2

Type :

Single Band

Antenna Connector Type :

SMA Male

Number of Bands :

1

Interfaces :

I2C/I2S/SPI/UART/USB

Cable Type :

5 M RG174

Series :

-

Frequency :

1.5754 GHz

Mounting Style :

Magnetic Mount

Height (Max) :

0.500 (12.70mm)

Center Frequency :

1575.4(MHz)

Polarization :

RHCP

Cable Length :

5.18 m

Features :

-

Package :

Bulk

RF/Microwave Device Type :

GPS ANTENNA

Data Bus Width :

32 bit

Antenna Type :

Dome

Product Category :

Antennas

Termination :

SMA Male

Program Memory Size :

128 kb

Gain :

5dBic

Impedance :

50 Ohms

Width :

45 mm

Brand :

Pulse Electronics

Style :

Square

Manufacturer :

Pulse

VSWR (Max) :

2

Minimum Operating Temperature :

- 30 C

IP Rating :

IP66

Mounting Type :

Adhesive

Ingress Protection :

-

Frequency Range :

-

Product Status :

Active

Product Type :

GPS Antennas - GNSS, GLONASS, Galileo, Beidou

Return Loss :

-

Application :

Satellite Navigation, Asset Tracking, Fleet Management

Frequency Group :

UHF (1GHz ~ 2GHz)

Frequency (Center/Band) :

1.575GHz
