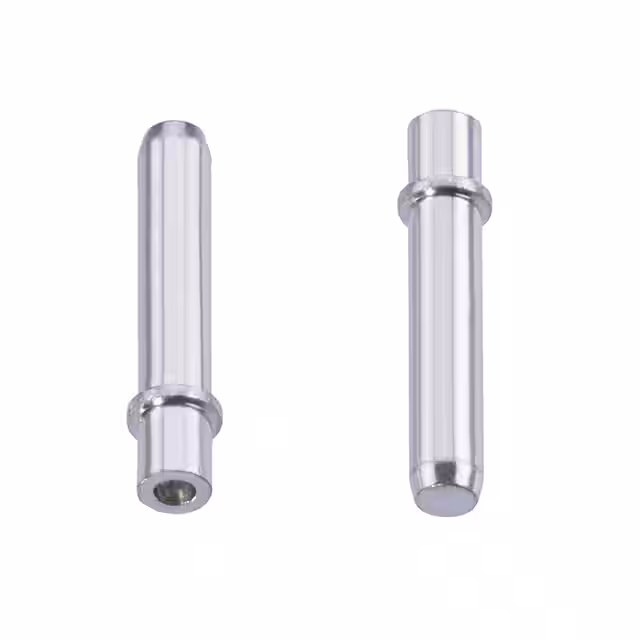

H2182-01
Or copy the link below:
- Mfr.Part #
- H2182-01
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN PC PIN 1.75MM DIA TIN 8.1MM
- Stock
- 789
- In Stock ：
- 789
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- PC Pin, Single Post Connectors
- Contact Material :
- Brass
- Contact Finish Thickness :
- -
- Length - Above Flange :
- 0.319 (8.10mm)
- Length :
- 10.45 mm
- Terminal Type :
- PC Pin
- Length - Below Flange :
- 0.077 (1.95mm)
- Termination :
- Swage
- Series :
- -
- Pin Size - Above Flange :
- 0.070 (1.78mm) Dia
- Mounting Angle :
- Vertical
- RoHS :
- Details
- Material - Insulation :
- -
- Product :
- Wire to Board Terminals
- Flange Diameter :
- 0.089 (2.25mm)
- Minimum Operating Temperature :
- - 40 C
- Product Status :
- Active
- Maximum Operating Temperature :
- + 105 C
- Pin Size - Below Flange :
- 0.070 (1.78mm) Dia
- Contact Plating :
- Tin
- Terminal Style :
- Single End
- Board Thickness :
- 0.063 (1.60mm)
- Mounting Hole Diameter :
- 0.071 ~ 0.075 (1.80mm ~ 1.90mm)
- Contact Finish :
- Tin
- Package :
- Bag
- Gender :
- Male
- Insulation Color :
- -
- Length - Overall :
- 0.411 (10.45mm)
- Base Product Number :
- H2182
- Insulation :
- Non-Insulated
- Mounting Hole Dia :
- 1.9mm
- Mounting Type :
- Through Hole
- Datasheets
- H2182-01
