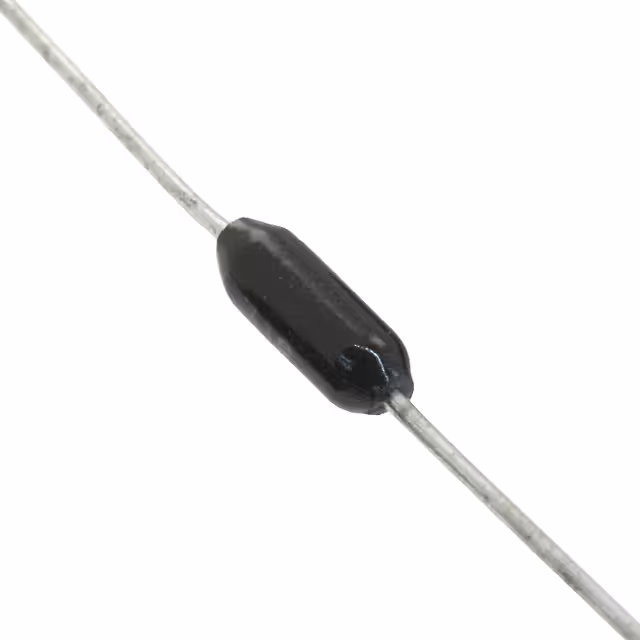

H8100KBYA

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Reach Compliance Code :

Compliant

Lead Length :

30 mm

Height - Seated (Max) :

--

Cable Type :

24 AWG to 20 AWG (0.047 in to 0.08 in)

Series :

Holco, Holsworthy

Military Standard :

Not

Operating Temperature :

-55°C ~ 155°C

Product Category :

Metal Film Resistors - Through Hole

Diameter :

2.7 mm

Temperature Coefficient :

±15ppm/°C

Package Length :

7.2 mm

ELV :

Compliant

Package Shape :

TUBULAR PACKAGE

Packaging :

Bulk

Failure Rate :

--

Voltage Rating (DC) :

350 V

Manufacturer :

Brady

Max Operating Temperature :

155 °C

Factory Lead Time :

13 Weeks

Length :

7.2 mm

Mounting Feature :

THROUGH HOLE MOUNT

RoHS :

No

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 6 days ago)

Shrink Ratio :

2 to 1

Material Type :

Polyolefin

Number of Resistors :

1

Resistance Tolerance :

± 0.1%

Product Type :

Metal Film Resistors

Number of Terminals :

2

Product Width :

-

Resistor Type :

Ultra Precision

Features :

Pulse Withstanding

Lead/Base Style :

Axial

Qualification :

-

Product Length :

7.2mm

Approvals :

ASTM, UL

Power Rating :

250mW

Background Color :

Orange

Technology :

Metal Film

Construction :

Tubular

Number of Pins :

2

Lifecycle Status :

Production (Last Updated: 6 days ago)

Voltage Rating :

350V

Size / Dimension :

0.098 Dia x 0.283 L (2.50mm x 7.20mm)

Working Voltage :

350 V

Resistance :

100 kOhms

Surface Mount :

No

Terminal Shape :

Wire

Package / Case :

Axial

Mount :

Axial, Through Hole

Tolerance :

±0.1%

Minimum Operating Temperature :

-55°C

Brand :

TE Connectivity / Holsworthy

Composition :

Metal Film

Min Operating Temperature :

-55 °C

Rated Power Dissipation (P) :

0.25 W

REACH SVHC :

No SVHC

Power (Watts) :

0.25W, 1/4W

Termination :

Axial

Package :

Bulk

Number of Terminations :

2

Adhesive :

No

Maximum Operating Temperature :

+155°C

Mounting Style :

PCB Mount

Termination Style :

Axial

Rated Temperature :

70 °C

Radiation Hardening :

No

Max Power Dissipation :

250 mW

Label Width :

2

Product Status :

Active

ECCN Code :

EAR99

Supplier Device Package :

Axial

Product :

Metal Film Resistors - Through Hole

Label Height :

0.182

Weight :

240.007063 mg

Additional Feature :

PRECISION

Type :

Precision Resistor

Application :

Heat Shrink

Subcategory :

Resistors

Lead Diameter :

0.6 mm

Packing Method :

Tape
