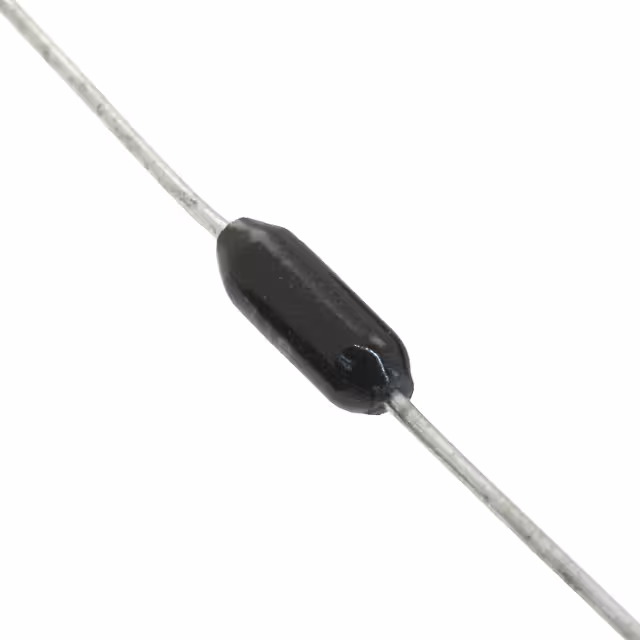

H811R5DZA

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Manufacturer :

TE Connectivity

Product :

Metal Film Resistors - Through Hole

Composition :

Metal Film

Mounting Style :

PCB Mount

Diameter :

2.7 mm

Product Status :

Active

Additional Feature :

PRECISION

REACH SVHC :

Unknown

Failure Rate :

--

Voltage Rating :

350 V

Height - Seated (Max) :

--

Mount :

Panel

Maximum Operating Temperature :

+ 155 C

Voltage Rating (AC) :

277 V

RoHS :

Compliant

Temperature Coefficient :

±100ppm/°C

Supplier Device Package :

Axial

ECCN Code :

EAR99

Power (Watts) :

0.25W, 1/4W

Minimum Operating Temperature :

- 55 C

Termination Style :

Axial

Packing Method :

Tape

Features :

Pulse Withstanding

Packaging :

Bulk

Rated Temperature :

70 °C

Working Voltage :

350 V

Voltage Rating (DC) :

65 V

Number of Terminations :

2

Package Shape :

TUBULAR PACKAGE

Resistance :

11.5 Ohms

Rated Power Dissipation (P) :

0.25 W

Operating Temperature :

-55°C ~ 155°C

Size / Dimension :

0.098 Dia x 0.283 L (2.50mm x 7.20mm)

Package :

Bulk

Resistor Type :

FIXED RESISTOR

Lead Length :

30 mm

Package Length :

7.2 mm

Type :

Precision Resistor

Lead Diameter :

0.6 mm

Mounting Feature :

THROUGH HOLE MOUNT

Surface Mount :

No

Tolerance :

±0.5%

Length :

7.2 mm

Construction :

Tubular

Technology :

Metal Film

Product Category :

Metal Film Resistors - Through Hole

Breaker Type :

Magnetic (Hydraulic Delay)

Package / Case :

Axial

Number of Terminals :

2

Series :

Holco, Holsworthy

Number of Poles :

1

Brand :

TE Connectivity / AMP

Product Type :

Metal Film Resistors

Terminal Shape :

Wire

Subcategory :

Resistors

Reach Compliance Code :

Compliant

Power Rating :

250 mW (1/4 W)
