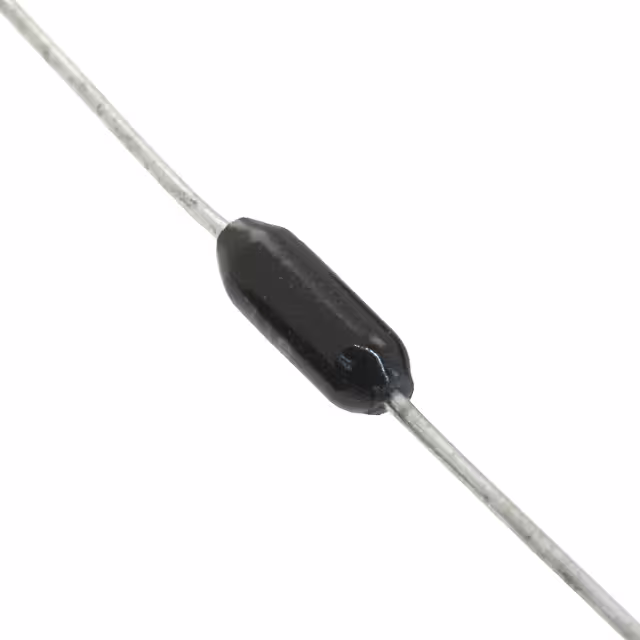

H8130RFYA

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Height - Seated (Max) :

--

Radiation Hardening :

No

Termination :

Axial

Mount :

Axial, Through Hole

Packing Method :

Tape

Tolerance :

±1%

Additional Feature :

PRECISION

Product Status :

Active

Features :

Pulse Withstanding

Shape :

Square, Fins

Temperature Coefficient :

±15ppm/°C

Reach Compliance Code :

Compliant

Max Operating Temperature :

155 °C

Resistance :

130 Ohms

Lifecycle Status :

Production (Last Updated: 3 days ago)

Contact Plating :

Tin

Width :

1.181 (30.00mm)

Lead Diameter :

0.6 mm

Mounting Feature :

THROUGH HOLE MOUNT

Power (Watts) :

0.25W, 1/4W

Series :

pushPIN™

Length :

1.181 (30.00mm)

Operating Temperature :

-55°C ~ 155°C

Number of Terminations :

2

Attachment Method :

Push Pin

Minimum Operating Temperature :

- 55 C

Package Shape :

TUBULAR PACKAGE

RoHS :

Compliant

Product Type :

Metal Film Resistors

Voltage Rating :

350 V

Package Length :

7.2 mm

Resistor Type :

FIXED RESISTOR

Base Product Number :

H8

Weight :

240.007063 mg

Packaging :

Bulk

Number of Terminals :

2

Type :

Top Mount

Product Category :

Metal Film Resistors - Through Hole

ECCN Code :

EAR99

Power Dissipation @ Temperature Rise :

--

Brand :

TE Connectivity / Holsworthy

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Thermal Resistance @ Forced Air Flow :

7.52°C/W @ 100 LFM

Subcategory :

Resistors

Package :

Bulk

ELV :

Compliant

Lead Length :

30 mm

Factory Lead Time :

13 Weeks

Terminal Shape :

Wire

Height Off Base (Height of Fin) :

0.790 (20.00mm)

Composition :

Metal Film

Number of Resistors :

1

Package Cooled :

Assorted (BGA, LGA, CPU, ASIC...)

Material Finish :

Blue Anodized

Technology :

Metal Film

Manufacturer :

TE Connectivity

Maximum Operating Temperature :

+ 155 C

Surface Mount :

No

Min Operating Temperature :

-55 °C

Construction :

Tubular

Termination Style :

Axial

Material :

Aluminum

Diameter :

--

Failure Rate :

--

Supplier Device Package :

Axial

Power Rating :

250 mW

Product :

Metal Film Resistors - Through Hole

Working Voltage :

350 V

Max Power Dissipation :

250 mW

Rated Power Dissipation (P) :

0.25 W

Package / Case :

Axial

Thermal Resistance @ Natural :

--

Rated Temperature :

70 °C

Mounting Style :

PCB Mount

Size / Dimension :

0.098 Dia x 0.283 L (2.50mm x 7.20mm)
