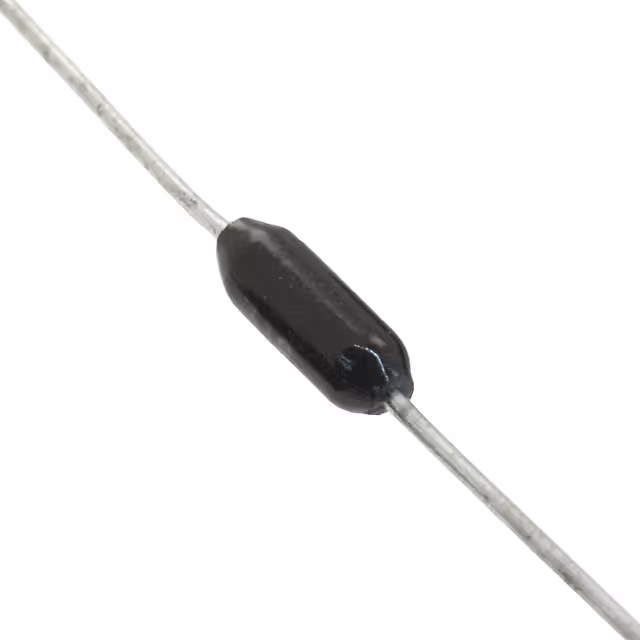

H814K7BCA

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Working Voltage :

350 V

Width :

1.181 (30.00mm)

Height Off Base (Height of Fin) :

0.984 (25.00mm)

Height - Seated (Max) :

--

Mounting Style :

PCB Mount

Additional Feature :

PRECISION

Product Type :

Metal Film Resistors

Material :

Aluminum

Size / Dimension :

0.098 Dia x 0.283 L (2.50mm x 7.20mm)

Termination Style :

Axial

Operating Temperature :

-55°C ~ 155°C

Terminal Shape :

Wire

Lead Length :

30 mm

Power (Watts) :

0.25W, 1/4W

Package :

Bulk

Tolerance :

±0.1%

Resistance :

14.7 kOhms

ECCN Code :

EAR99

Product Category :

Metal Film Resistors - Through Hole

Resistor Type :

FIXED RESISTOR

Package Length :

7.2 mm

Number of Terminations :

2

Mounting Feature :

THROUGH HOLE MOUNT

Minimum Operating Temperature :

- 55 C

Surface Mount :

No

Technology :

Metal Film

Material Finish :

Blue Anodized

Packaging :

Bulk

Power Dissipation @ Temperature Rise :

--

Supplier Device Package :

Axial

Product Status :

Active

Brand :

TE Connectivity / Holsworthy

Power Rating :

250 mW (1/4 W)

Reach Compliance Code :

Compliant

Attachment Method :

Push Pin

Shape :

Square, Fins

Subcategory :

Resistors

Diameter :

--

Packing Method :

Tape

Thermal Resistance @ Natural :

--

Package / Case :

Axial

Lead Diameter :

0.6 mm

Rated Temperature :

70 °C

Temperature Coefficient :

±50ppm/°C

Maximum Operating Temperature :

+ 155 C

Thermal Resistance @ Forced Air Flow :

10.97°C/W @ 100 LFM

Number of Terminals :

2

Type :

Top Mount

Package Shape :

TUBULAR PACKAGE

Composition :

Metal Film

Package Cooled :

Assorted (BGA, LGA, CPU, ASIC...)

Base Product Number :

H8

Manufacturer :

TE Connectivity

Rated Power Dissipation (P) :

0.25 W

Failure Rate :

--

Series :

pushPIN™

Length :

1.181 (30.00mm)

Features :

Pulse Withstanding

Construction :

Tubular
