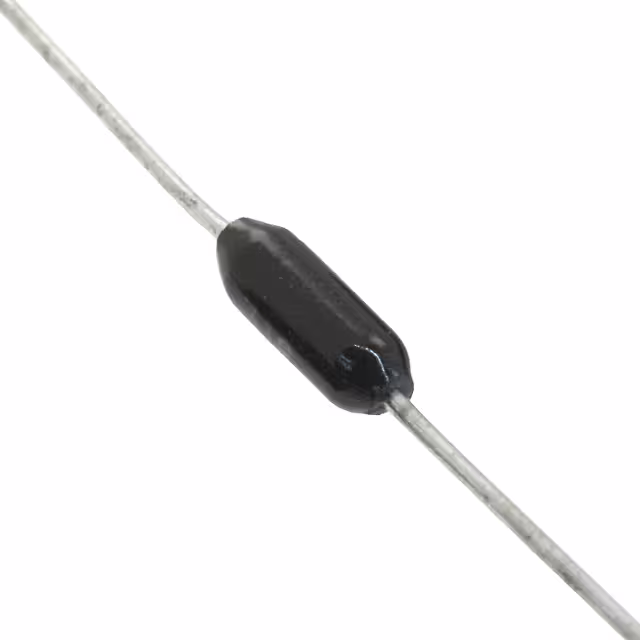

H8309KBDA

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Minimum Operating Temperature :

- 55 C

Product Category :

Metal Film Resistors - Through Hole

Brand :

TE Connectivity / Holsworthy

Number of Terminals :

2

Temperature Coefficient :

25.0000 ppm/°C

Working Voltage :

350 V

Rated Power Dissipation (P) :

0.25 W

Failure Rate :

--

Subcategory :

Resistors

Size / Dimension :

0.098 Dia x 0.283 L (2.50mm x 7.20mm)

Diameter :

2.5 mm

Additional Feature :

PRECISION

Resistance :

309 kOhm

Termination Style :

Axial

Series :

Holco, Holsworthy

Construction :

Tubular

Composition :

Metal Film

Terminal Shape :

Wire

Resistor Type :

FIXED RESISTOR

Product Status :

Active

Resistance Tolerance :

0.1

Mounting Feature :

THROUGH HOLE MOUNT

Features :

Pulse Withstanding

Package Shape :

TUBULAR PACKAGE

Package Length :

7.2 mm

Maximum Operating Temperature :

+ 155 C

Supplier Device Package :

Axial

Length :

7.2 mm

Factory Lead Time :

15 Weeks

Technology :

Metal Film

Reach Compliance Code :

Compliant

Lead Length :

30 mm

Package / Case :

Axial

Height - Seated (Max) :

--

Number of Terminations :

2

Rated Temperature :

70 °C

Product Length :

7.2

Tolerance :

±0.1%

Operating Temperature :

-55°C ~ 155°C

Lead Diameter :

0.6 mm

Packaging :

Bulk

Package :

Bulk

Manufacturer :

Miscellaneous

Power Rating :

0.25 W

Product Type :

Metal Film Resistors

Mounting Style :

PCB Mount

Surface Mount :

No

Power (Watts) :

0.25W, 1/4W

ECCN Code :

EAR99

Packing Method :

Tape
