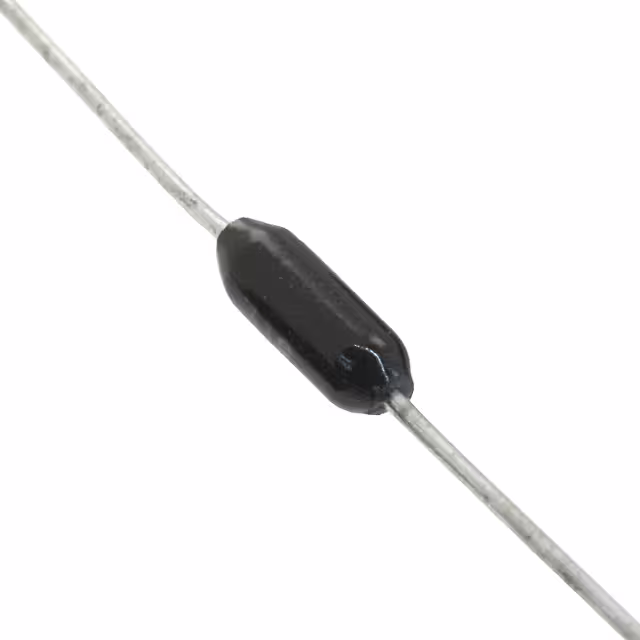

H8422KDZA

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Power Rating :

250 mW (1/4 W)

Composition :

Metal Film

Maximum Operating Temperature :

+ 155 C

Package Shape :

TUBULAR PACKAGE

Number of Terminals :

2

Series :

Holco, Holsworthy

Rated Power Dissipation (P) :

0.25 W

Product Category :

Metal Film Resistors - Through Hole

Number of Terminations :

2

Minimum Operating Temperature :

- 55 C

Mounting Feature :

THROUGH HOLE MOUNT

Size / Dimension :

0.098 Dia x 0.283 L (2.50mm x 7.20mm)

ECCN Code :

EAR99

Termination Style :

Axial

Package / Case :

Axial

Rated Temperature :

70 °C

Base Product Number :

H8

Diameter :

2.5 mm

Product Type :

Metal Film Resistors

Lead Diameter :

0.6 mm

Packing Method :

Tape

Features :

Pulse Withstanding

Package :

Bulk

Brand :

TE Connectivity / Holsworthy

Working Voltage :

350 V

Additional Feature :

PRECISION

Tolerance :

0.5%

Construction :

Tubular

Temperature Coefficient :

100 ppm/°C

Packaging :

Bulk

Height - Seated (Max) :

--

Resistance :

422000 Ω

Power (Watts) :

0.25W, 1/4W

Product Status :

Active

Lead Length :

30 mm

Operating Temperature :

-55°C ~ 155°C

Failure Rate :

--

Mounting Style :

PCB Mount

Reach Compliance Code :

Compliant

Resistor Type :

FIXED RESISTOR

Length :

7.2 mm

Supplier Device Package :

Axial

Package Length :

7.2 mm

Surface Mount :

No

Terminal Shape :

Wire
