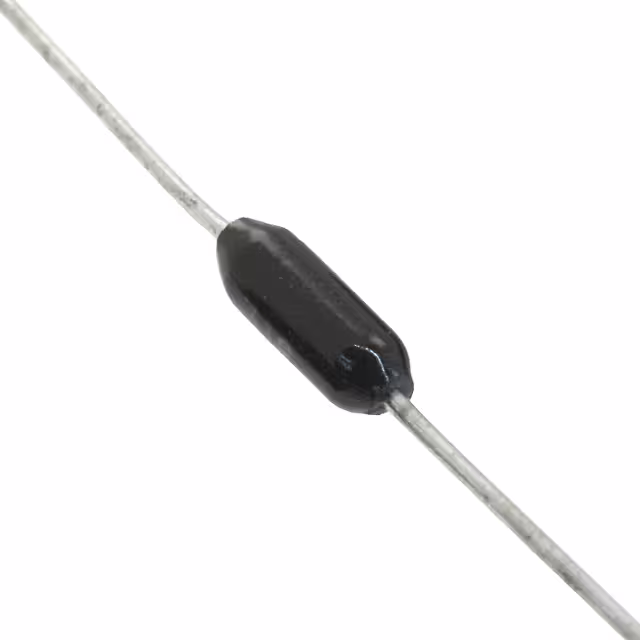

H8523RBCA

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Lead Length :

30 mm

Resistance :

523 Ω

ECCN Code :

EAR99

Brand :

TE Connectivity / Holsworthy

Diameter :

2.5 mm

Mounting Feature :

THROUGH HOLE MOUNT

Height - Seated (Max) :

--

Product Type :

Metal Film Resistors

Resistor Type :

FIXED RESISTOR

Lead Diameter :

0.6 mm

Package :

Bulk

Power (Watts) :

0.25W, 1/4W

Surface Mount :

No

Composition :

Metal Film

Tolerance :

0.1%

Minimum Operating Temperature :

- 55 C

Length :

7.2 mm

Temperature Coefficient :

50 ppm/°C

Base Product Number :

H8

Size / Dimension :

0.098 Dia x 0.283 L (2.50mm x 7.20mm)

Product Status :

Active

Series :

Holco, Holsworthy

Reach Compliance Code :

Compliant

Terminal Shape :

Wire

Package Length :

7.2 mm

Maximum Operating Temperature :

+ 155 C

Package Shape :

TUBULAR PACKAGE

Packing Method :

Tape

Product Category :

Metal Film Resistors - Through Hole

Working Voltage :

350 V

Power Rating :

250 mW (1/4 W)

Features :

Pulse Withstanding

Number of Terminals :

2

Failure Rate :

--

Additional Feature :

PRECISION

Number of Terminations :

2

Package / Case :

Axial

Supplier Device Package :

Axial

Rated Power Dissipation (P) :

0.25 W

Operating Temperature :

-55°C ~ 155°C

Construction :

Tubular

Termination Style :

Axial

Mounting Style :

PCB Mount

Rated Temperature :

70 °C

Packaging :

Bulk
