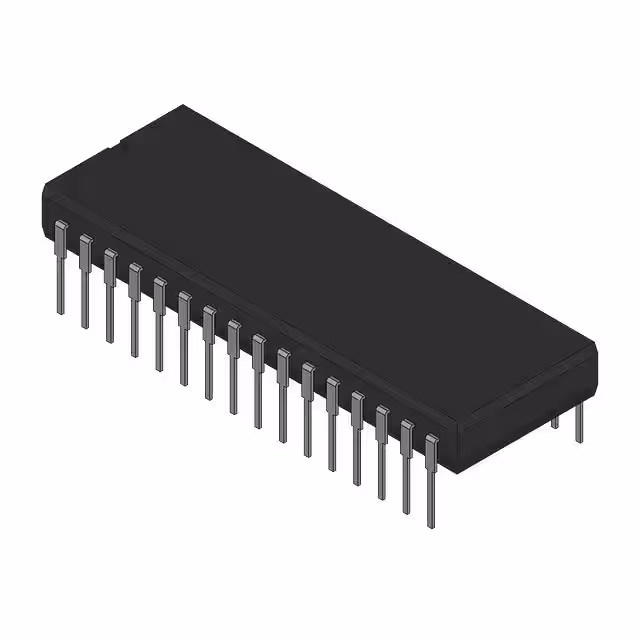

HAS-1202A

Manufacturer :

Analog Devices, Inc.

Product Category :

Analog to Digital Converters (ADC)

Number of Terminals :

32

Negative Supply Voltage-Nom :

-15 V

Surface Mount :

No

Voltage - Supply, Analog :

4.75V ~ 5.25V, ±14.75V ~ 15.5V

Product Status :

Active

Number of Bits :

12

Seated Height-Max :

5.08 mm

Pbfree Code :

No

Number of A/D Converters :

1

Reference Type :

-

Terminal Finish :

TIN LEAD

Package / Case :

32-CDIP (0.900, 22.90mm)

Number of Functions :

1

Terminal Position :

Dual

Analog Input Voltage-Max :

5.12 V

Package Shape :

RECTANGULAR

Sampling Rate (Per Second) :

350kHz

Data Interface :

Parallel

Number of Analog In Channels :

1

Analog Input Voltage-Min :

-5.12 V

Terminal Pitch :

2.54 mm

Mounting Type :

Through Hole

Voltage - Supply, Digital :

4.75V ~ 5.25V, ±14.75V ~ 15.5V

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Converter Type :

ADC, SUCCESSIVE APPROXIMATION

Series :

-

Pin Count :

32

Conversion Time-Max :

1.56 µs

Reach Compliance Code :

Unknown

Output Format :

PARALLEL, WORD

Ratio - S/H:ADC :

1:1

Features :

-

JESD-609 Code :

e0

Operating Temperature :

0°C ~ 70°C

Output Bit Code :

BINARY, OFFSET BINARY

Input Type :

Single Ended

Configuration :

S/H-ADC

Temperature Grade :

COMMERCIAL

JESD-30 Code :

R-MDIP-P32

Terminal Form :

PIN/PEG

Supplier Device Package :

32-CDIP

Package :

Bulk

Width :

22.86 mm

Manufacturer :

Rochester Electronics LLC

Architecture :

-

Qualification Status :

COMMERCIAL

Number of Inputs :

12
