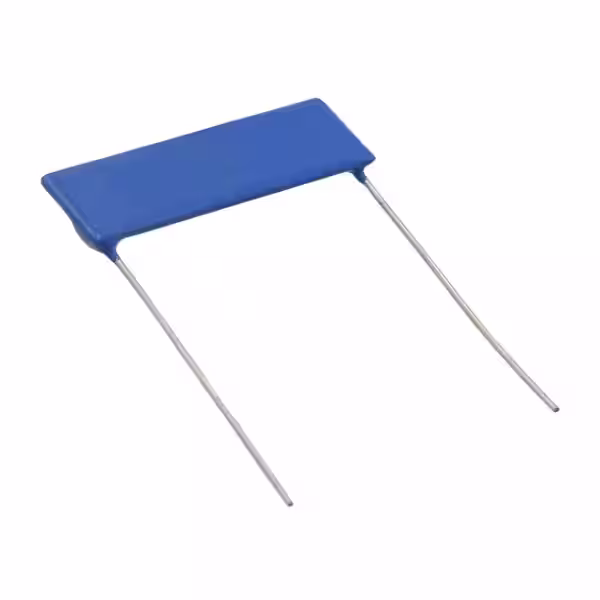

HB1100KFZRE

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Through Hole Resistors

Resistor Type :

FIXED RESISTOR

Series :

HB, CGS

Brand :

TE Connectivity / Holsworthy

Product Status :

Active

Maximum Operating Temperature :

+ 125 C

Product Type :

Thick Film Resistors

Lead Length :

25.4 mm

Max Power Dissipation :

2 W

Width :

2.9972 mm

Size / Dimension :

1.043 L x 0.118 W (26.50mm x 3.00mm)

ECCN Code :

EAR99

Flame-Proof Support :

No

Operating Temp Range :

-55C to 125C

Minimum Operating Temperature :

- 55 C

Tolerance :

1%

Max Operating Temperature :

125 °C

Packing Method :

Tray

Package :

Tray

Number of Terminals :

2

Pbfree Code :

yes

Height - Seated (Max) :

0.409 (10.40mm)

ELV :

Compliant

Power Rating(s) :

2(W)

Tolerance (+ or -) :

1%

Number of Terminations :

2

Mounting Style :

PCB Mount

Product Length :

26.5

Min Operating Temperature :

-55 °C

Product Width :

3 mm

Military Standard :

Not Required

Package / Case :

Radial

Product Diameter (mm) :

Not Required(mm)

Type :

Thick Film

Operating Temperature :

-55°C ~ 125°C

Depth :

3 mm

Case Style :

Epoxy

Mount :

Radial, Through Hole

Composition :

Thick Film

Factory Lead Time :

29 Weeks, 6 Days

Product Length (mm) :

26.5(mm)

Number of Resistors :

1

Package Shape :

RECTANGULAR PACKAGE

Termination :

Radial

Package Length :

26.5 mm

Voltage Rating (DC) :

7.5 kV

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Product Category :

Thick Film Resistors - Through Hole

Product :

Thick Film Resistors Leaded

Package Height :

10.4 mm

Packaging :

LOOSE/TRAY

Additional Feature :

RATED AC VOLTAGE : 7500

Power Rating :

2.0000 W

Lead Diameter :

0.6 mm

Features :

High Voltage, Pulse Withstanding

Termination Style :

Radial

Lead Pitch :

5 mm

Height :

10.3886 mm

Package Width :

3 mm

Rated Power Dissipation (P) :

2 W

Lifecycle Status :

Production (Last Updated: 3 days ago)

Resistance Tolerance :

1

Temperature Coefficient :

100 ppm/°C

Failure Rate :

Not Required

Qualification :

-

Lead Spacing (nom) :

22.9(mm)

Temperature Range @ Derated Power :

20 TO 120

Product Height (mm) :

10.4(mm)

Mounting Feature :

THROUGH HOLE MOUNT

Length :

26.5 mm

Supplier Device Package :

Radial Lead

RoHS :

Compliant

Rated Temperature :

70 °C

Lead Spacing :

22.9 mm

REACH SVHC :

Unknown

Construction :

RECTANGULAR

Diameter :

-

Product Depth (mm) :

3(mm)

Terminal Shape :

Wire

Base Product Number :

HB1

Surface Mount :

No

Power (Watts) :

2W

Reach Compliance Code :

Compliant

Resistance :

100000 Ω

Working Voltage :

7500 V

Voltage Rating :

7.5 kV
