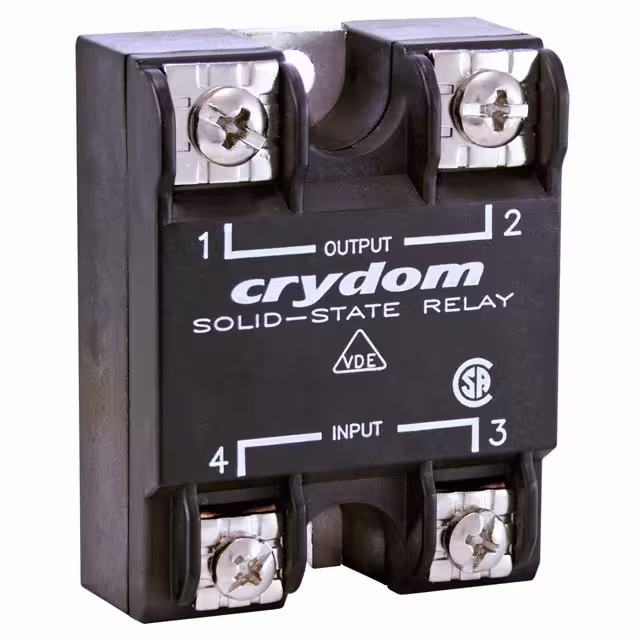

HD48110G

Manufacturer :

Sensata Technologies – Crydom

Product Category :

Solid State Relays

Manufacturer :

Crydom

Nominal Output Voltage :

48 VAC, 120 VAC, 208 VAC, 240 VAC, 277 VAC, 347 VAC, 380 VAC, 415 VAC, 480 VAC, 575 VAC

Control Current :

0.003A

Mounting :

Panel

JESD-609 Code :

e3

Input Type :

AC

Overall Length :

58.4mm

RoHS Status :

RoHS Compliant

Input Polarity :

AC/DC

Terminal Finish :

Tin (Sn)

Operating Temperature (Max) :

80°C

Input Signal :

4-32 VDC

Pbfree Code :

icon-pbfree yes

Reach Compliance Code :

Compliant

Current Rating :

110 A

Operating Temperature (Min) :

-40°C

Configuration :

Single

Termination :

Screw Terminal

On-State Current-Max :

110A

Output Type :

SCR

Optoelectronic Device Type :

TRIGGER OUTPUT SSR

Overall Height :

22.9mm

Output Circuit Type :

Back to Back SCR

Output Voltage :

48-530 VAC

Isolation Voltage-Max :

4000V

Control Voltage :

18V

Number of Elements :

1

Additional Feature :

VDE APPROVED, ZERO VOLTAGE CROSSING

HTS Code :

8541.40.95.00
