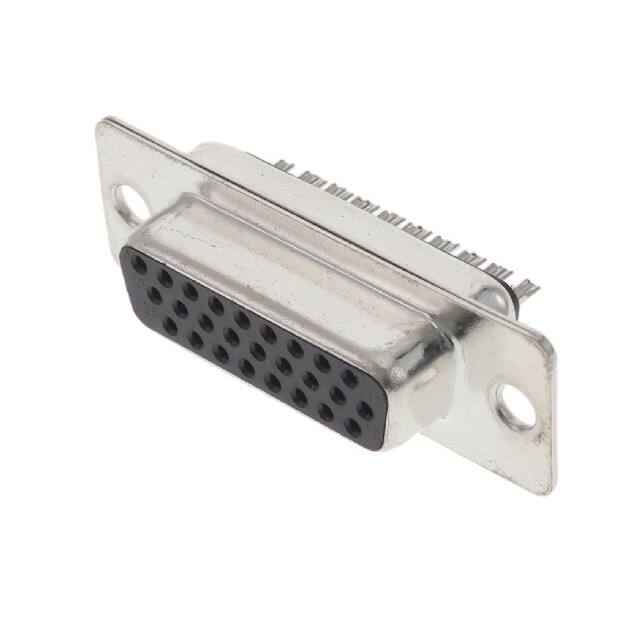

HDT26-SD

Manufacturer :

Adam Tech

Product Category :

D-Sub Connector Assemblies

Insulation Material :

GLASS FILLED POLYBUTYLENE TEREPHTHALATE

Termination :

Solder Cup

Mounting Type :

Free Hanging (In-Line)

Voltage - Rated :

250VAC

Mating Contact Row Spacing :

0.078 inch

Body Depth :

0.201 inch

Shell Material :

Steel

Contact Material :

COPPER ALLOY

Factory Lead Time :

9 Weeks

Insulation Resistance :

5000000000Ohm

Packaging :

Tray

Number of Rows :

3

Body Length or Diameter :

1.541 inch

Dielectric Material :

Polybutylene Terephthalate (PBT), Glass Filled

Operating Temperature (Max) :

125°C

Current Rating (Amps) :

3A

Mounting Option 1 :

HOLE .112-.124

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating :

5A

Shell Size, Connector Layout :

2 DA A High Density

Dielectric Withstanding Voltage :

1000VAC V

Total Number of Contacts :

26

Flange Feature :

Housing/Shell (Unthreaded)

Number of Positions :

26

Reliability :

COMMERCIAL

Connector Type :

Receptacle, Female Sockets

Shell Material, Finish :

Steel, Tin Plated

Material Flammability Rating :

UL94 V-0

Body Breadth :

0.494 inch

Plating :

Tin, Zinc

Contact Pattern :

STAGGERED

Reference Standard :

UL, CSA

Contact Resistance :

20mOhm

Operating Temperature (Min) :

-65°C

Additional Feature :

RoHS Compliant

Connector Style :

D-Sub, High Density

Contact Style :

RND PIN-SKT

RoHS Status :

ROHS3 Compliant

Color :

Black

Series :

HDT

Mounting Option 2 :

LOCKING

Contact Finish :

Gold

Gender :

FEMALE
