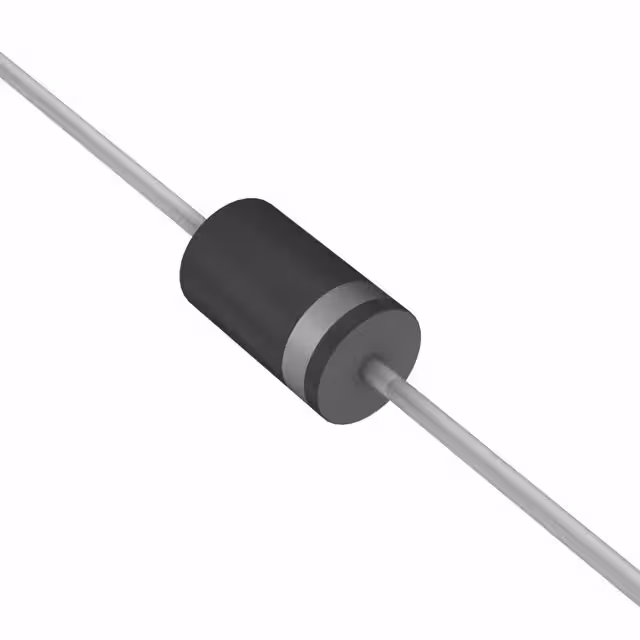

HER301G

Manufacturer :

Taiwan Semiconductor

Product Category :

Diodes - Rectifiers - Single

Packaging :

Tape and Box (TB)

Mounting Type :

Through Hole

Number of Phases :

1

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Published :

2012

Average Rectified Current :

3A

Case Connection :

Isolated

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Output Current-Max :

3A

Max Reverse Voltage (DC) :

50V

Pbfree Code :

yes

Factory Lead Time :

12 Weeks

Voltage - DC Reverse (Vr) (Max) :

50V

Package / Case :

DO-201AA, DO-27, Axial

Diode Type :

Standard

Number of Terminations :

2

Terminal Form :

Wire

Reverse Current-Max :

5μA

Reverse Recovery Time :

50 ns

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Current - Reverse Leakage @ Vr :

5µA @ 50V

JESD-30 Code :

O-PALF-W2

Diode Element Material :

SILICON

Operating Temperature - Junction :

-55°C~150°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Forward (Vf) (Max) @ If :

1V @ 3A

Number of Elements :

1

Configuration :

Single

RoHS Status :

ROHS3 Compliant

Application :

EFFICIENCY

Operating Temperature (Max) :

150°C

Mount :

Through Hole

Base Part Number :

HER301
