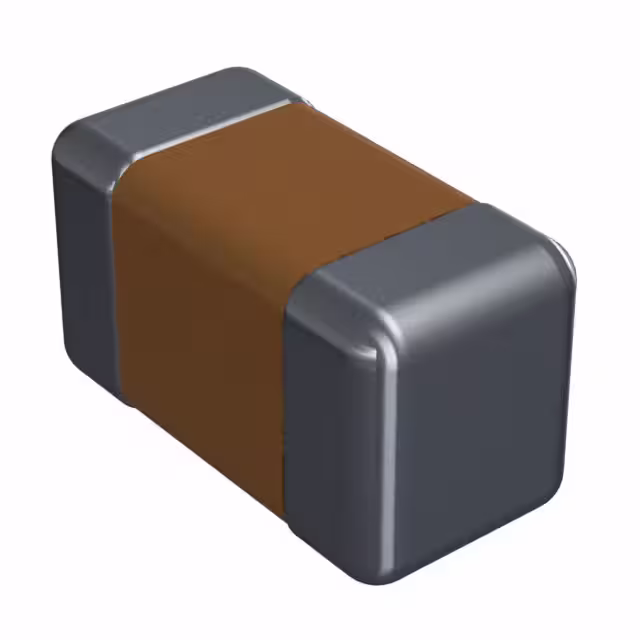

HH15N391F160CT

Manufacturer :

Walsin Technology

Product Category :

Ceramic Capacitors

Package / Case :

0402 (1005 Metric)

Terminal Finish :

TIN OVER NICKEL

Features :

High Q, Low Loss, Ultra Low ESR

Package :

Tape and Reel (TR)

Reach Compliance Code :

Compliant

Pbfree Code :

yes

Mounting Feature :

Surface Mount

Brand :

Walsin

Temperature Coefficient :

C0G, NP0

Surface Mount :

yes

RoHS :

Details

Maximum Operating Temperature :

+ 125 C

Packaging :

MouseReel

HTS Code :

8532.24.00.20

Capacitor Type :

CERAMIC CAPACITOR

Terminal Shape :

WRAPAROUND

Product Status :

Active

Positive Tolerance :

1

Tolerance :

±1%

Thickness (Max) :

0.022" (0.55mm)

Voltage - Rated :

16V

Operating Temperature :

-55°C ~ 125°C

Multilayer :

yes

Manufacturer :

Walsin

Series :

HH

Mounting Type :

Surface Mount, MLCC

Lead Spacing :

-

Product :

RF Microwave / High Q

Dielectric :

C0G (NP0)

Class :

Class 1

Product Type :

Ceramic Capacitors

Package Shape :

RECTANGULAR PACKAGE

Size / Dimension :

0.039" L x 0.020" W (1.00mm x 0.50mm)

Applications :

RF, Microwave, High Frequency

Termination :

Standard

Size Code :

0402

JESD-609 Code :

e3

Type :

High Q and Low ESR MLCC

Packing Method :

TR, Paper, 7 Inch

Temperature Characteristics Code :

C0G

Ratings :

-

Subcategory :

Capacitors

Length :

1

Dielectric Material :

Ceramic

Negative Tolerance :

1

Lead Style :

-

Width :

0.5

Height :

0.5

Number of Terminals :

2

Minimum Operating Temperature :

- 55 C

Failure Rate :

-

Product Category :

Multilayer Ceramic Capacitors MLCC - SMD/SMT

Capacitance :

390 pF

ECCN Code :

EAR99

Height - Seated (Max) :

-

Termination Style :

SMD/SMT

Rated (DC) Voltage (URdc) :

16 V
