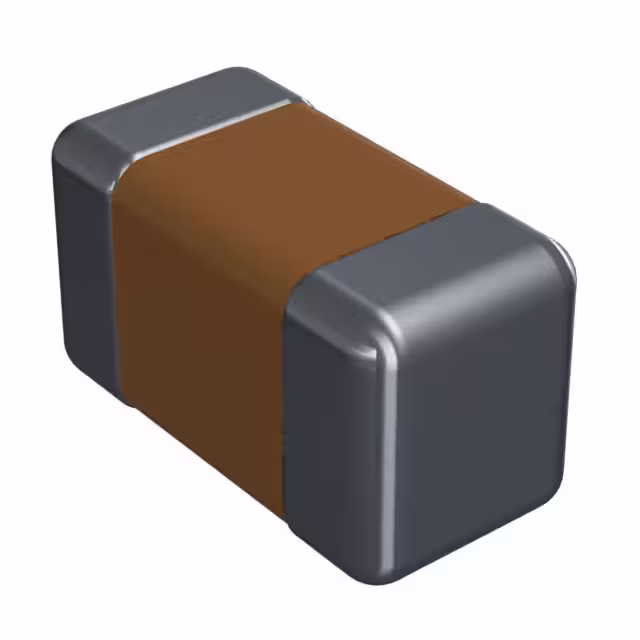

HH15N5R6D500CT

Manufacturer :

Walsin Technology

Product Category :

Ceramic Capacitors

RoHS :

Details

Length :

1 mm

Capacitance :

5.6 pF

Minimum Operating Temperature :

- 55 C

Height - Seated (Max) :

-

Manufacturer :

Walsin

Mounting Type :

Surface Mount, MLCC

Multilayer :

yes

Surface Mount :

yes

Width :

0.5 mm

Negative Tolerance :

8.93

Ratings :

-

Voltage - Rated :

50V

Temperature Coefficient :

C0G, NP0

Subcategory :

Capacitors

Mounting Feature :

Surface Mount

Size Code :

0402

Package :

Tape and Reel (TR)

Dielectric :

C0G (NP0)

Brand :

Walsin

Operating Temperature :

-55°C ~ 125°C

Tolerance :

±0.5pF

Size / Dimension :

0.039" L x 0.020" W (1.00mm x 0.50mm)

Product Type :

Ceramic Capacitors

Capacitor Type :

CERAMIC CAPACITOR

Positive Tolerance :

8.93

Package Shape :

RECTANGULAR PACKAGE

Packaging :

MouseReel

Terminal Finish :

TIN OVER NICKEL

Applications :

RF, Microwave, High Frequency

Lead Spacing :

-

Termination :

Standard

Terminal Shape :

WRAPAROUND

Product Category :

Multilayer Ceramic Capacitors MLCC - SMD/SMT

Thickness (Max) :

0.022" (0.55mm)

Product :

RF Microwave / High Q

Product Status :

Active

Dielectric Material :

Ceramic

Class :

Class 1

JESD-609 Code :

e3

Features :

High Q, Low Loss, Ultra Low ESR

Series :

HH

Lead Style :

-

Pbfree Code :

yes

Package / Case :

0402 (1005 Metric)

Rated (DC) Voltage (URdc) :

50 V

Type :

High Q and Low ESR MLCC

Termination Style :

SMD/SMT

Number of Terminals :

2

Temperature Characteristics Code :

C0G

Maximum Operating Temperature :

+ 125 C

HTS Code :

8532.24.00.20

Height :

0.25 mm

ECCN Code :

EAR99

Packing Method :

TR, Paper, 7 Inch

Failure Rate :

-

Reach Compliance Code :

Compliant
