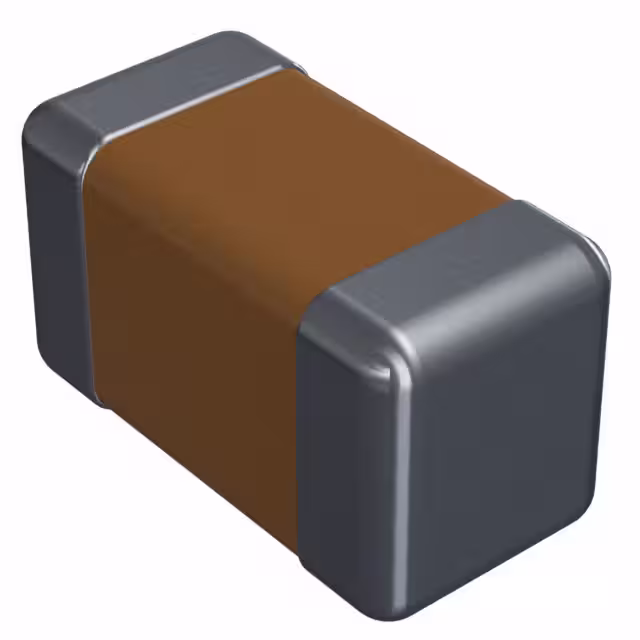

HH18N0R9B101LT

Manufacturer :

Walsin Technology

Product Category :

Ceramic Capacitors

Tolerance :

±0.1pF

Packaging :

MouseReel

Capacitor Type :

CERAMIC CAPACITOR

Manufacturer :

Walsin

Features :

High Q, Low Loss

Packing Method :

TR, Paper, 7 Inch

Ratings :

-

Class :

Class 1

Thickness (Max) :

0.034" (0.87mm)

Product Type :

Ceramic Capacitors

HTS Code :

8532.24.00.20

Capacitance :

0.9 pF

Termination Style :

SMD/SMT

Operating Temperature :

-55°C ~ 125°C

Product Category :

Multilayer Ceramic Capacitors MLCC - SMD/SMT

Lead Style :

-

Rated (DC) Voltage (URdc) :

100 V

Size / Dimension :

0.063" L x 0.031" W (1.60mm x 0.80mm)

Series :

HH

Failure Rate :

-

Size Code :

0603

Length :

1.6 mm

Reach Compliance Code :

Compliant

Temperature Coefficient :

C0G, NP0

Dielectric Material :

Ceramic

Temperature Characteristics Code :

C0G

Mounting Type :

Surface Mount, MLCC

Package Shape :

RECTANGULAR PACKAGE

Minimum Operating Temperature :

- 55 C

Height - Seated (Max) :

-

Multilayer :

yes

JESD-609 Code :

e3

Width :

0.8 mm

Surface Mount :

yes

Height :

0.8 mm

Product :

RF Microwave / High Q

ECCN Code :

EAR99

Dielectric :

C0G (NP0)

Negative Tolerance :

11.1111%

Brand :

Walsin

Product Status :

Active

Terminal Finish :

Tin (Sn) - with Nickel (Ni) barrier

Positive Tolerance :

11.1111%

Termination :

Standard

Number of Terminals :

2

Mounting Feature :

Surface Mount

Terminal Shape :

WRAPAROUND

Voltage - Rated :

100V

Maximum Operating Temperature :

+ 125 C

RoHS :

Details

Pbfree Code :

yes

Subcategory :

Capacitors

Package / Case :

0603 (1608 Metric)

Applications :

RF, Microwave, High Frequency

Type :

High Q and Low ESR MLCC

Lead Spacing :

-
