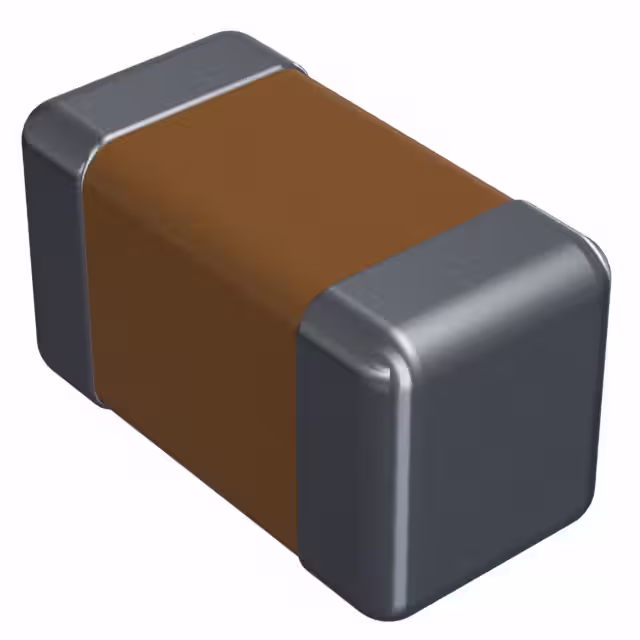

HH18N120J101CT

Manufacturer :

Walsin Technology

Product Category :

Ceramic Capacitors

Negative Tolerance :

5

Length :

1.6

Lead Style :

-

Manufacturer :

Walsin

Package Shape :

RECTANGULAR PACKAGE

Number of Terminals :

2

Reach Compliance Code :

Compliant

Product Type :

Ceramic Capacitors

Product Category :

Multilayer Ceramic Capacitors MLCC - SMD/SMT

Pbfree Code :

yes

Positive Tolerance :

5

Type :

High Q and Low ESR MLCC

Rated (DC) Voltage (URdc) :

100 V

Product Status :

Active

Class :

Class 1

JESD-609 Code :

e3

Terminal Finish :

TIN OVER NICKEL

RoHS :

Details

Height - Seated (Max) :

-

Packing Method :

TR, Paper, 7 Inch

Size Code :

0603

HTS Code :

8532.24.00.20

Voltage - Rated :

100V

Multilayer :

yes

Surface Mount :

yes

Product :

RF Microwave / High Q

Package / Case :

0603 (1608 Metric)

Series :

HH

Width :

0.8

Termination :

Standard

Terminal Shape :

WRAPAROUND

Subcategory :

Capacitors

Mounting Feature :

Surface Mount

Operating Temperature :

-55°C ~ 125°C

Tolerance :

±5%

Packaging :

MouseReel

Failure Rate :

-

Size / Dimension :

0.063" L x 0.031" W (1.60mm x 0.80mm)

Minimum Operating Temperature :

- 55 C

Ratings :

-

Capacitance :

12 pF

Package :

Tape and Reel (TR)

Temperature Characteristics Code :

C0G

Applications :

RF, Microwave, High Frequency

Features :

High Q, Low Loss, Ultra Low ESR

Temperature Coefficient :

C0G, NP0

Height :

0.8

ECCN Code :

EAR99

Capacitor Type :

CERAMIC CAPACITOR

Brand :

Walsin

Dielectric :

C0G (NP0)

Dielectric Material :

Ceramic

Lead Spacing :

-

Thickness (Max) :

0.034" (0.87mm)

Termination Style :

SMD/SMT

Mounting Type :

Surface Mount, MLCC

Maximum Operating Temperature :

+ 125 C
