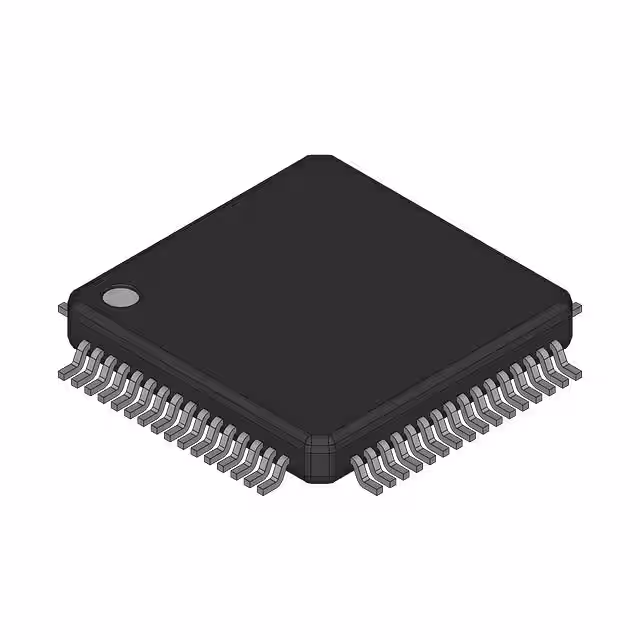

HI5630/8CN

Manufacturer :

Harris Corporation

Product Category :

Analog to Digital Converters (ADC)

Pbfree Code :

No

Technology :

CMOS

Package :

Bulk

Output Format :

PARALLEL, 8 BITS

Sample and Hold / Track and Hold :

SAMPLE

Converter Type :

ADC, FLASH METHOD

JESD-30 Code :

S-PQFP-G64

Series :

*

Surface Mount :

yes

Output Bit Code :

OFFSET BINARY, 2S COMPLEMENT BINARY

Product Status :

Active

Length :

14 mm

Linearity Error-Max (EL) :

0.7812%

HTS Code :

8542.39.00.01

Number of Analog In Channels :

3

Manufacturer :

Rochester Electronics LLC

Qualification Status :

Not Qualified

Power Supplies :

5 V

Width :

14 mm

Number of Functions :

1

Temperature Grade :

COMMERCIAL

Subcategory :

Analog to Digital Converters

Terminal Position :

QUAD

Number of Bits :

8

Terminal Form :

Gull wing

Seated Height-Max :

3.15 mm

Reach Compliance Code :

Unknown

Terminal Finish :

TIN LEAD

Number of Terminals :

64

Pin Count :

64

Package Shape :

Square

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

JESD-609 Code :

e0

Terminal Pitch :

0.8 mm

Analog Input Voltage-Max :

1 V
