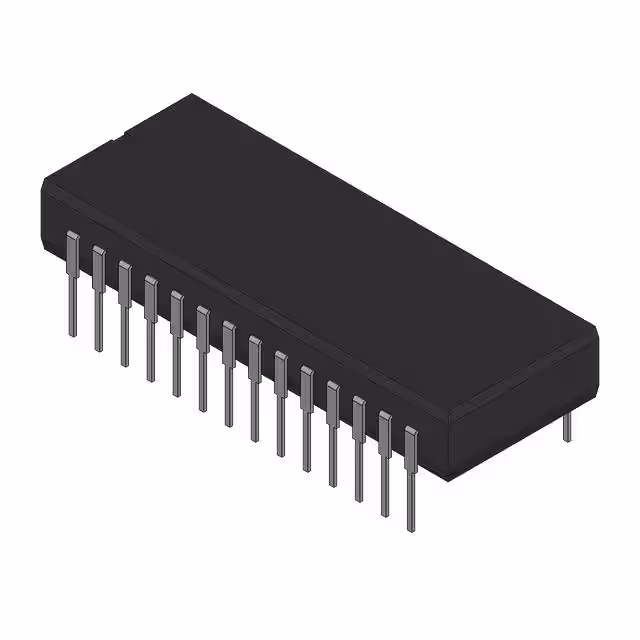

HI5702KCB

Manufacturer :

Harris Corporation

Product Category :

Analog to Digital Converters (ADC)

Number of Analog In Channels :

1

Data Interface :

Parallel

Architecture :

Flash

Configuration :

S/H-ADC

Conversion Time-Max :

2 μs

Terminal Position :

Dual

Operating Temperature :

0°C ~ 70°C

Analog Input Voltage-Max :

4.375 V

Series :

-

Terminal Pitch :

1.27 mm

Supplier Device Package :

28-SOIC

Power Supplies :

5 V

Technology :

BICMOS

Qualification Status :

Not Qualified

Mounting Type :

Surface Mount

Number of Terminals :

28

Number of Functions :

1

Sample and Hold / Track and Hold :

SAMPLE

Converter Type :

ADC, FLASH METHOD

Linearity Error-Max (EL) :

0.1953%

Analog Input Voltage-Min :

0.625 V

Reference Type :

External

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Voltage - Supply, Analog :

5V

Terminal Form :

Gull wing

Surface Mount :

yes

Terminal Finish :

TIN LEAD

HTS Code :

8542.39.00.01

Pbfree Code :

No

JESD-609 Code :

e0

Output Bit Code :

OFFSET BINARY, 2S COMPLEMENT BINARY

Output Format :

PARALLEL, WORD

Pin Count :

28

Reach Compliance Code :

Unknown

Temperature Grade :

COMMERCIAL

Package Shape :

RECTANGULAR

Features :

-

Manufacturer :

Rochester Electronics LLC

Sampling Rate (Per Second) :

40m

Input Type :

Differential

Number of A/D Converters :

10

JESD-30 Code :

R-PDSO-G28

Product Status :

Active

Number of Inputs :

1

Package :

Bulk

Package / Case :

28-SOIC (0.295, 7.50mm Width)

Voltage - Supply, Digital :

5V

Ratio - S/H:ADC :

10:10

Number of Bits :

10

Subcategory :

Analog to Digital Converters
