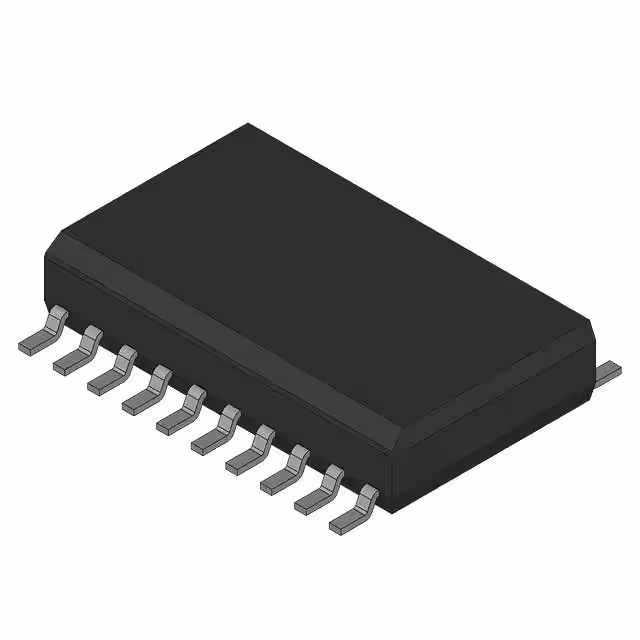

HIP6004ACB

Manufacturer :

Intersil

Product Category :

DC DC Switching Controllers

ECCN Code :

EAR99

Pbfree Code :

No

Clock Sync :

No

Control Mode :

VOLTAGE-MODE

Analog IC - Other Type :

SWITCHING CONTROLLER

Control Technique :

PULSE WIDTH MODULATION

Surface Mount :

yes

Temperature Grade :

COMMERCIAL

Number of Terminals :

20

JESD-609 Code :

e0

Series :

-

Reach Compliance Code :

Unknown

Frequency - Switching :

200kHz, 50kHz ~ 1MHz

Operating Temperature :

0°C ~ 70°C (TA)

Duty Cycle (Max) :

100%

Terminal Position :

Dual

JESD-30 Code :

R-PDSO-G20

Pin Count :

20

Package / Case :

20-SOIC (0.295, 7.50mm Width)

Seated Height-Max :

2.65 mm

Length :

12.8 mm

Product Status :

Obsolete

Package :

Bulk

Output Type :

Transistor Driver

Output Configuration :

Positive

Topology :

Buck

Input Voltage-Nom :

12 V

Package Shape :

RECTANGULAR

Terminal Finish :

TIN LEAD

Switcher Configuration :

Push-Pull

Additional Feature :

CAN ALSO BE USED AS OUTPUT VOLTAGE MONITOR

Voltage - Supply (Vcc/Vdd) :

10.8V ~ 13.2V

Width :

7.5 mm

Control Features :

Frequency Control, Phase Control, Power Good, Soft Start

Manufacturer :

Rochester Electronics LLC

Terminal Form :

Gull wing

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Mounting Type :

Surface Mount

Number of Outputs :

1

Function :

Step-Down

Synchronous Rectifier :

yes

Supplier Device Package :

20-SOIC

Terminal Pitch :

1.27 mm

Number of Functions :

1

Serial Interfaces :

-

Output Phases :

1

HTS Code :

8542.39.00.01

Switching Frequency-Max :

1000 kHz
