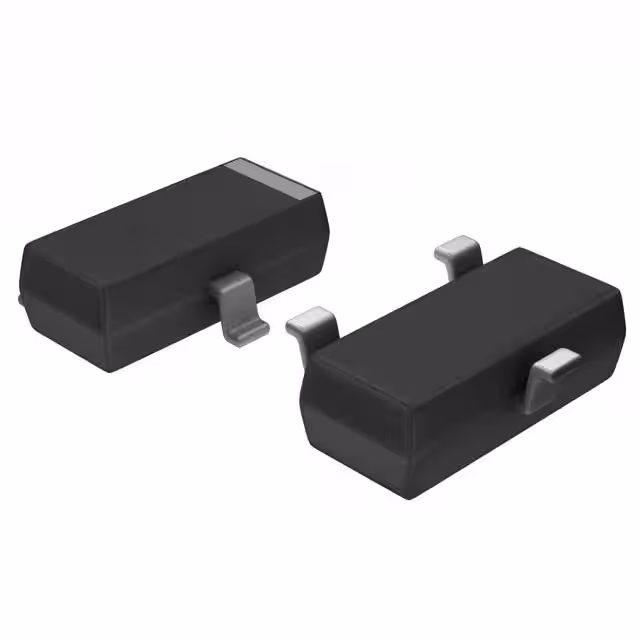

HSMP-3812-TR1G

Manufacturer :

Broadcom

Product Category :

Diodes - RF

Qualification Status :

Not Qualified

Reach Compliance Code :

Unknown

Diode Forward Resistance-Max :

3 Ω

Application :

Attenuator

Terminal Finish :

Tin

Power Dissipation-Max :

0.25 W

Configuration :

SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

Diode Capacitance-Max :

0.35 pF

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Pin Count :

3

Subcategory :

PIN Diodes

Manufacturer :

Agilent Technologies Inc

HTS Code :

8541.10.00.80

Package Shape :

RECTANGULAR

Surface Mount :

yes

JESD-30 Code :

R-PDSO-G3

Terminal Position :

Dual

Number of Terminals :

3

Reverse Test Voltage :

50 V

Additional Feature :

LOW DISTORTION

ECCN Code :

EAR99

Diode Capacitance-Nom :

0.27 pF

Breakdown Voltage-Min :

100 V

Diode Element Material :

SILICON

Technology :

POSITIVE-INTRINSIC-NEGATIVE

Terminal Form :

Gull wing

JESD-609 Code :

e3

Diode Type :

PIN DIODE

Minority Carrier Lifetime-Nom :

1.5 μs

Number of Elements :

2
