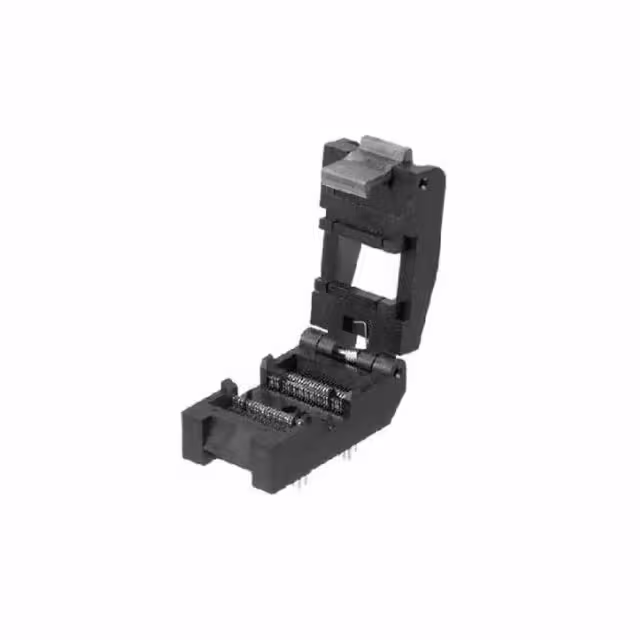

IC51-0644-807

Manufacturer :

Yamaichi Electronics

Product Category :

Socket Accessories

Housing Material :

PEI, PES, PSU

Accessory Type :

Chip Carrier

Product Status :

Active

Termination Style :

SMD/SMT

Max Operating Temperature :

170 °C

Dielectric Withstanding Voltage :

700VAC V

Contact Style :

SINGLE PRONG

For Use With/Related Products :

IC Sockets

Body Finish :

-

Gender :

FEMALE

Material Flammability Rating :

-

Pitch :

0.5 mm

Current Rating :

1 A

Min Operating Temperature :

-55 °C

Maximum Operating Temperature :

+ 170 C

Number of Contacts :

64

Operating Temperature :

-55°C ~ 170°C

Number of Pins :

64

Color :

Black

Reach Compliance Code :

Unknown

Mating Contact Pitch :

0.02 inch

Body Orientation :

Straight

Additional Feature :

W/ FLOATING BASE LIDLESS

Mounting Style :

-

Contact Plating :

Gold

RoHS :

Details

Features :

-

Insulation Resistance :

1000000000 Ω

Base Product Number :

IC51-0644

Number of Rows :

-

Termination :

SMD/SMT

Series :

IC51

Minimum Operating Temperature :

- 55 C

Type :

Chip Carrier

Number of Positions :

64 Position

Lead Free :

Lead Free

Package :

Box

PCB Contact Pattern :

STAGGERED

Row Spacing :

-

Product :

QFP Sockets

Package Type :

QFP

Body Breadth :

0.394 inch

ECCN Code :

EAR99

Termination Type :

Solder

Device Socket Type :

IC SOCKET

HTS Code :

8536.69.40.40

Contact Material :

BERYLLIUM COPPER

Termination Method :

Solder

Device Type Used On :

QFP64

Body Material :

Polyethersulfone (PES), Glass Filled
