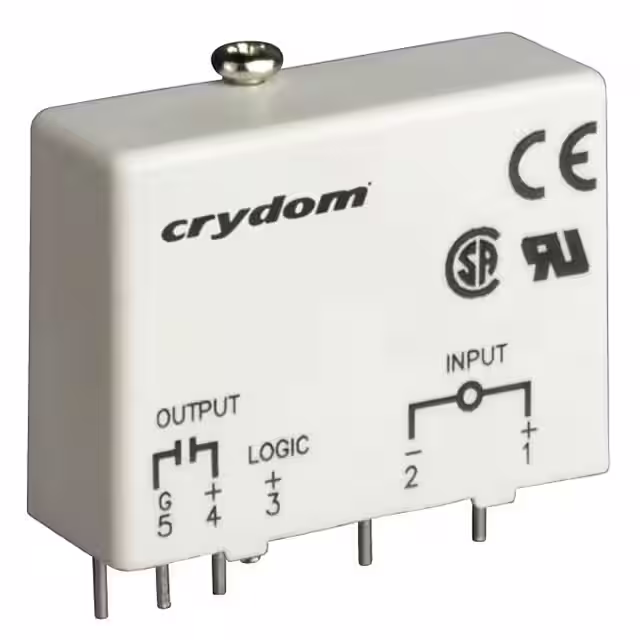

IDC24F

Manufacturer :

Sensata Technologies – Crydom

Product Category :

I/O Relay Modules

Number of Terminals :

5

Max Output Current :

16 mA

Package Shape :

RECTANGULAR

Number of Circuits :

1

Terminal Form :

PIN/PEG

Number of Outputs :

1

Terminal Position :

Dual

Qualification Status :

Not Qualified

Input Type :

DC

RoHS :

yes

Color :

White

Number of Functions :

1

Output Voltage :

24 VDC

ECCN Code :

EAR99

Analog IC - Other Type :

DC-DC REGULATED POWER SUPPLY MODULE

Reach Compliance Code :

Compliant

Input Current :

68MA(mA)

Operating Temperature Min Deg. C :

-30C

Product Weight :

31.2(g)

Trim/Adjustable Output :

No

Load Current (Max) :

50MA(A)

Input Voltage :

4-32 VDC

JESD-30 Code :

R-XDMA-P5

Temperature Grade :

COMMERCIAL EXTENDED

Output Type :

DC

Manufacturer :

Crydom

Module Type :

Input Module

Technology :

Solid State

Surface Mount :

No

Operating Temperature Max Deg. C :

80C

Input Voltage (Max) :

32VDC

I/O Isolation Voltage :

4000VAC

Mounting Style :

Through Hole/Plug-In

Agency Approvals :

CE

Input Voltage (Min) :

4VDC

Package Type :

Mini With Screw

Load Voltage (Max) :

30VDC

Approvals :

CE, CSA, UL
