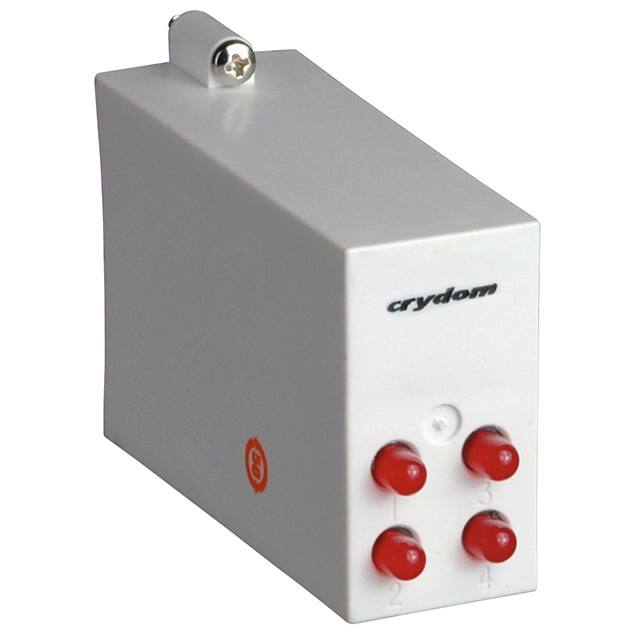

IDC5BQ

Manufacturer :

Sensata Technologies – Crydom

Product Category :

I/O Relay Modules

REACH SVHC :

No SVHC

Manufacturer :

Opto 22

Number of I/Os :

4

Number of Circuits :

1

Number of Channels :

4

Depth :

78.23 mm

Output Current :

50 mA

Max Input Voltage (DC) :

16 V

Length :

53.34 mm

Number of Outputs :

4

Current Rating :

45mA

RoHS :

Compliant

Operating Supply Voltage :

6 V

Input Current :

12 mA

Min Operating Temperature :

-30 °C

Width :

26.9 mm

Input Voltage :

4-16 VDC

Output Voltage :

5 VDC

Max Operating Temperature :

70 °C

Mount :

PCB, Panel, Plug-In, Through Hole

Mounting Style :

PC Board

Voltage Rating (DC) :

16 V

Turn-Off Delay Time :

10 μs

Approvals :

CE, CSA

Turn-On Delay Time :

50 µs

Color :

Yellow
