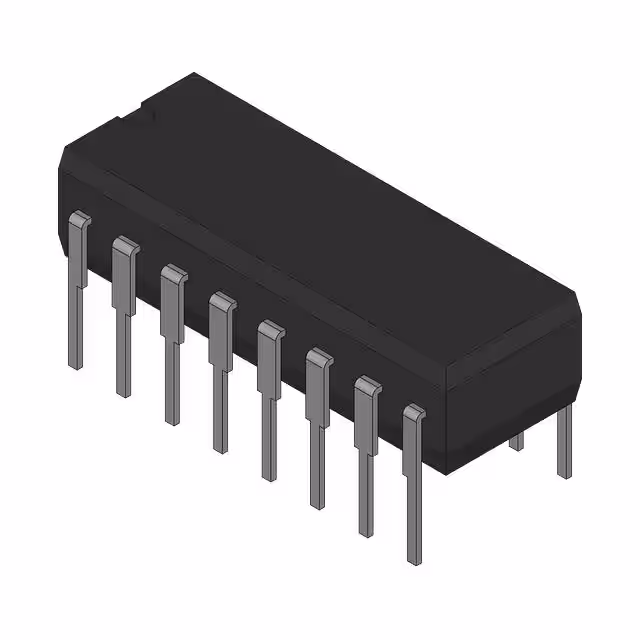

IH5020MDE

Manufacturer :

Harris Corporation

Product Category :

Analog Switches, Multiplexers, Demultiplexers

Operating Temperature :

-55°C ~ 125°C

Terminal Position :

Dual

Crosstalk :

-120dB @ 100Hz

Multiplexer/Demultiplexer Circuit :

1:1

Product Status :

Active

Number of Circuits :

2

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Switch Time (Ton, Toff) (Max) :

500ns, 500ns

JESD-609 Code :

e0

Switch Circuit :

SPDT

Charge Injection :

-

JESD-30 Code :

R-CDIP-T16

Voltage - Supply, Single (V+) :

30V

On-State Resistance (Max) :

100Ohm

Pbfree Code :

No

Package :

Bulk

Series :

-

Package Shape :

RECTANGULAR

Current - Leakage (IS(off)) (Max) :

500pA

Number of Terminals :

16

Manufacturer :

Rochester Electronics LLC

Package / Case :

16-CDIP (0.300, 7.62mm)

Surface Mount :

No

Temperature Grade :

Military

Number of Functions :

2

Terminal Form :

THROUGH-HOLE

RoHS :

Non-Compliant

Voltage - Supply, Dual (V±) :

30V

Number of Channels :

1

Reach Compliance Code :

Unknown

Analog IC - Other Type :

SPST

Supplier Device Package :

16-CDIP

Qualification Status :

COMMERCIAL

-3db Bandwidth :

-

Channel Capacitance (CS(off), CD(off)) :

-

Switch-off Time-Max :

500 ns

Mounting Type :

Through Hole

Terminal Finish :

TIN LEAD

Switch-on Time-Max :

500 ns
