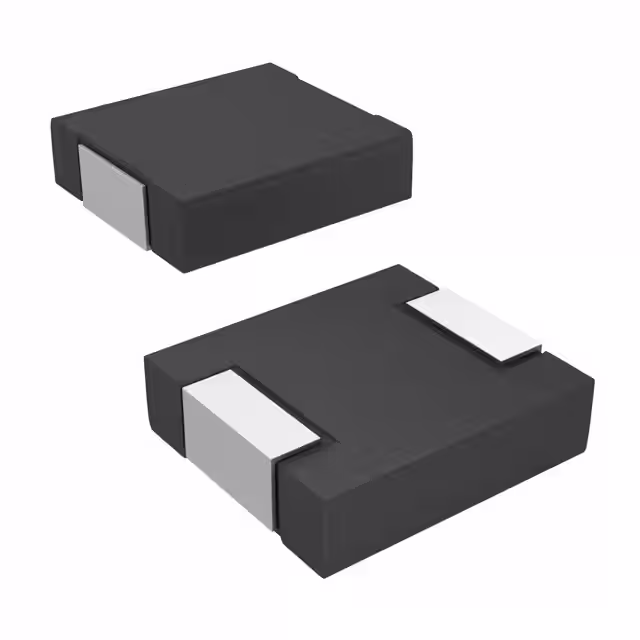

IHLP1616BZERR10M5A

Manufacturer :

Vishay / Dale

Product Category :

Fixed Inductors

Application :

Automotive

Product Depth (mm) :

4.31(mm)

Rad Hardened :

No

Saturation Current :

19 A

Package Height :

2 mm

DC Resistance (DCR) :

4.2mOhm Max

Tolerance (+ or -) :

20%

Product :

Power Inductors

Core Material :

Powdered Iron

Reach Compliance Code :

Compliant

Ratings :

AEC-Q200

Inductance :

100 nH

Surface Mount :

yes

Failure Rate :

Not Required

Package / Case :

Nonstandard

Qualification :

AEC-Q200

Features :

-

Q @ Freq :

-

Current Rating (Amps) :

17.3 A

Mounting Type :

Surface Mount

Product Height :

2mm

Shielded :

yes

Packaging :

MouseReel

Inductance Frequency - Test :

100 kHz

Product Type :

Fixed Inductors

Reference Standard :

AEC-Q200

Inductance Tolerance :

± 20%

Termination :

Standard

Diameter :

-

Case Size :

1616

Product Category :

Power Inductors - SMD

Package Length :

4.06 mm

Series :

IHLP-1616BZ-5A

Product Width :

4.06mm

Military Standard :

Not Required

Height - Seated (Max) :

0.079" (2.00mm)

Minimum Operating Temperature :

- 55 C

Termination Style :

SMD/SMT

Length :

4.06 mm

Frequency - Self Resonant :

320MHz

Product Length (mm) :

4.7(mm)

RMS Current (Irms) :

17.3A

Case/Size Code :

1616

Operating Temp Range :

-55C to 155C

DC Resistance :

0.0042(ohm)

Width :

4.06 mm

Rated Current-Max :

17.3 A

Number of Functions :

1

Product Diameter (mm) :

Not Required(mm)

HTS Code :

8504.50.80.00

Terminal Finish :

Tin (Sn) - with Nickel (Ni) barrier

RoHS :

Details

Brand :

Vishay / Dale

Inductance-Nom (L) :

0.1 µH

Construction :

RECTANGULAR

Shielding :

Shielded

Mounting Style :

PCB Mount

Supplier Device Package :

-

Tradename :

IHLP

Height :

2 mm

Product Height (mm) :

2(mm)

Type :

Molded

Terminal Shape :

WRAPAROUND

Packing Method :

TR, 13 INCH

Tolerance :

±20%

Technology :

Wirewound

Product Status :

Active

Maximum Operating Temperature :

+ 125 C

Current - Saturation (Isat) :

19A

Subcategory :

Inductors, Chokes and Coils

Inductor Application :

HIGH CURRENT INDUCTOR

Product Length :

4.45mm

Self Resonant Frequency :

320(MHz)

Operating Temperature :

-55°C ~ 155°C

Package Width :

4.06 mm

Number of Terminals :

2

ECCN Code :

EAR99

Shape/Size Description :

RECTANGULAR PACKAGE

Terminal Placement :

DUAL ENDED

Test Frequency :

0.1(MHz)

Material - Core :

-

JESD-609 Code :

e3

Factory Lead Time :

11 Weeks

Core Type :

Molded

Size / Dimension :

0.175" L x 0.160" W (4.45mm x 4.06mm)

Manufacturer :

Vishay

Package :

Digi-Reel?

Inductor Type :

GENERAL PURPOSE INDUCTOR
