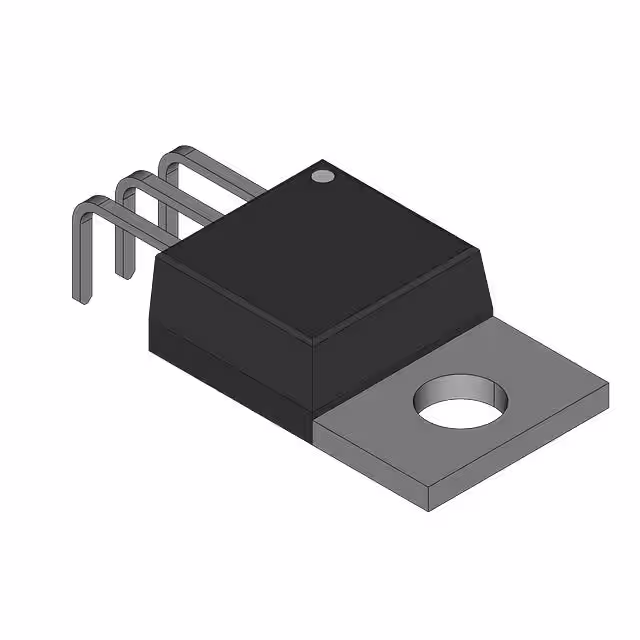

IRFAF52

Manufacturer :

International Rectifier

Product Category :

Transistors - FETs, MOSFETs - Single

Drain to Source Voltage (Vdss) :

900 V

FET Feature :

-

Power Dissipation (Max) :

150W

Current - Continuous Drain (Id) @ 25°C :

5.7A

JEDEC-95 Code :

TO-204AA

JESD-30 Code :

O-MBFM-P2

Drive Voltage (Max Rds On, Min Rds On) :

-

Number of Terminals :

2

Terminal Position :

BOTTOM

Product Status :

Active

FET Type :

N-Channel

Operating Temperature :

-

Pulsed Drain Current-Max (IDM) :

23 A

DS Breakdown Voltage-Min :

900 V

Package / Case :

TO-204AA, TO-3

Manufacturer :

Rochester Electronics LLC

Surface Mount :

No

Case Connection :

DRAIN

Series :

-

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Mounting Type :

Through Hole

Number of Elements :

1

Rds On (Max) @ Id, Vgs :

-

Configuration :

Single

Terminal Form :

PIN/PEG

Drain-source On Resistance-Max :

1.9 Ω

Polarity/Channel Type :

N-Channel

Reach Compliance Code :

Unknown

Package Shape :

Round

Vgs(th) (Max) @ Id :

-

Transistor Element Material :

SILICON

Supplier Device Package :

TO-204AA (TO-3)

Vgs (Max) :

-

Operating Mode :

ENHANCEMENT MODE

Qualification Status :

COMMERCIAL

Package :

Bulk
