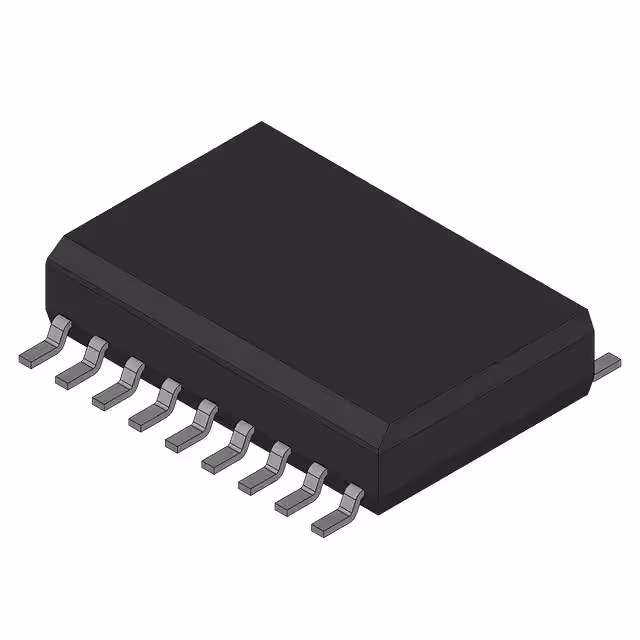

ISL8563IB

Manufacturer :

Intersil

Product Category :

Drivers, Receivers, Transceivers

Width :

7.5 mm

Package Shape :

RECTANGULAR

JESD-30 Code :

R-PDSO-G18

Reach Compliance Code :

Unknown

Driver Number of Bits :

2

Surface Mount :

yes

JESD-609 Code :

e0

Operating Temperature :

-40°C ~ 85°C

Package :

Bulk

Supplier Device Package :

18-SOIC

HTS Code :

8542.39.00.01

Receiver Hysteresis :

500 mV

Pbfree Code :

No

Interface IC Type :

LINE TRANSCEIVER

Interface Standard :

EIA-232; TIA-232; EIA-562; TIA-562

Temperature Grade :

Industrial

Voltage - Supply :

3V ~ 5.5V

Seated Height-Max :

2.65 mm

Package / Case :

18-SOIC (0.295, 7.50mm Width)

Terminal Finish :

TIN LEAD

Terminal Form :

Gull wing

Differential Output :

No

Transmit Delay-Max :

3500 ns

Number of Functions :

2

Terminal Position :

Dual

Product Status :

Active

Type :

Transceiver

Pin Count :

18

Number of Terminals :

18

Receiver Number of Bits :

2

Receive Delay-Max :

1000 ns

Input Characteristics :

Schmitt Trigger

Terminal Pitch :

1.27 mm

ECCN Code :

EAR99

Duplex :

Full

Qualification Status :

Not Qualified

Protocol :

RS232, RS562

Number of Drivers/Receivers :

2/2

Length :

11.55 mm

Series :

-

Mounting Type :

Surface Mount

Data Rate :

500Kbps

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Manufacturer :

Rochester Electronics LLC

Technology :

CMOS
