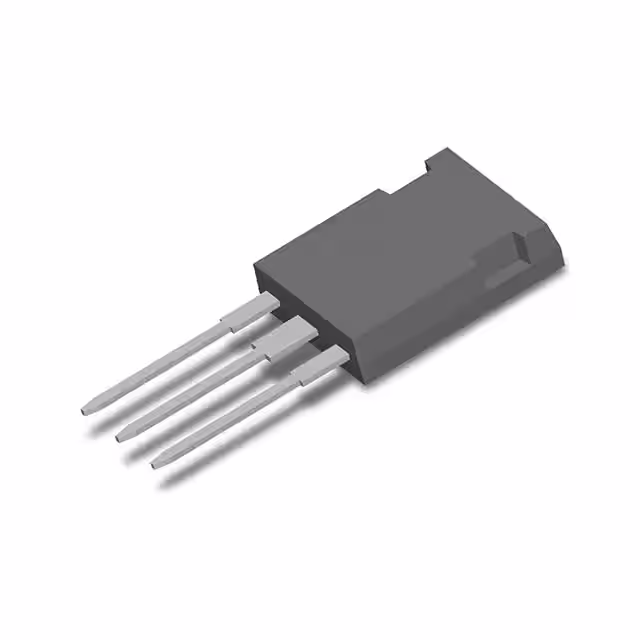

IXYX140N120A4

Manufacturer :

Littelfuse

Product Category :

Transistors - IGBTs - Single

Product Category :

IGBT Transistors

Mounting Type :

Through Hole

Operating Temperature :

-55°C ~ 175°C (TJ)

Test Condition :

600V, 70A, 1.5Ohm, 15V

Product Type :

IGBT Transistors

Package :

Tube

Brand :

IXYS

Product Status :

Active

Reverse Recovery Time (trr) :

47 ns

Maximum Operating Temperature :

+ 175 C

Input Type :

Standard

Packaging :

Tube

Supplier Device Package :

PLUS247?-3

Vce(on) (Max) @ Vge, Ic :

1.7V @ 15V, 140A

Configuration :

Single

Td (on/off) @ 25°C :

52ns/590ns

Manufacturer :

IXYS

Current - Collector (Ic) (Max) :

480 A

Package / Case :

TO-247-3 Variant

Voltage - Collector Emitter Breakdown (Max) :

1200 V

Switching Energy :

4.9mJ (on), 12mJ (off)

RoHS :

Details

Power - Max :

1500 W

Base Product Number :

IXYX140

Series :

XPT?, GenX4?

Subcategory :

IGBTs

Technology :

Si

Current - Collector Pulsed (Icm) :

1200 A

Mounting Style :

Through Hole

Gate Charge :

420 nC

Minimum Operating Temperature :

- 55 C

IGBT Type :

PT
