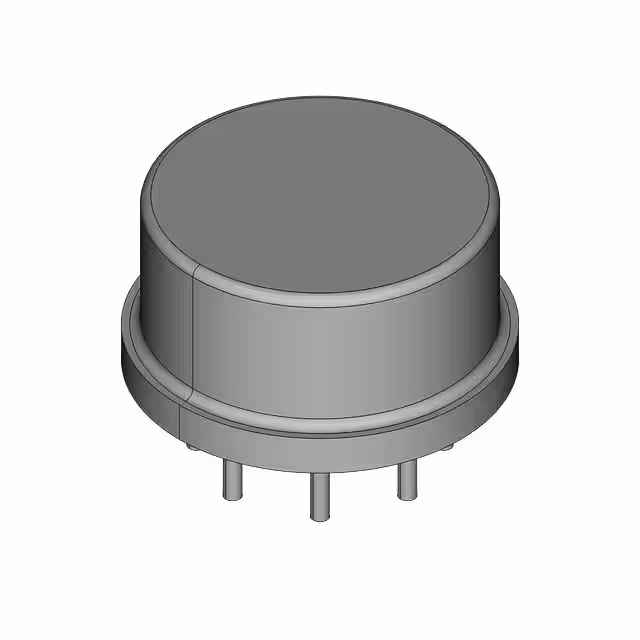

JL156BGA

Manufacturer :

National Semiconductor

Product Category :

Instrumentation, OP Amps, Buffer Amps

Max Operating Temperature :

125°C

Width :

9.08mm

Gain Bandwidth Product :

5MHz

RoHS Status :

Non-RoHS Compliant

Neg Supply Voltage-Nom (Vsup) :

-20V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Form :

Wire

Temperature Grade :

Military

Slew Rate :

7.5 V/μs

Min Dual Supply Voltage :

5V

Current - Input Bias :

60nA

Micropower :

No

Pin Count :

8

Package / Case :

TO-99

Common Mode Rejection Ratio :

85 dB

Lead Free :

Contains Lead

Number of Pins :

8

Terminal Position :

BOTTOM

Height :

5.72mm

Power :

No

Number of Functions :

1

Thickness :

4.4mm

Low-Offset :

No

Radiation Hardening :

No

Programmable Power :

No

ECCN Code :

EAR99

Max Dual Supply Voltage :

20V

Number of Terminations :

8

Nominal Supply Current :

7mA

Operating Supply Voltage :

20V

Voltage Gain :

80dB

Current - Output :

50mA

Low-Bias :

yes

Supply Voltage :

20V

Mount :

Through Hole

Number of Channels :

1

Min Operating Temperature :

-55°C

Input Offset Voltage (Vos) :

7mV

Unity Gain BW-Nom :

5000 kHz

Input Offset Current-Max (IIO) :

0.02μA

Average Bias Current-Max (IIB) :

0.0035μA

Architecture :

VOLTAGE-FEEDBACK

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Wideband :

No

Amplifier Type :

Operational Amplifier

Frequency Compensation :

yes

Length :

9.08mm
