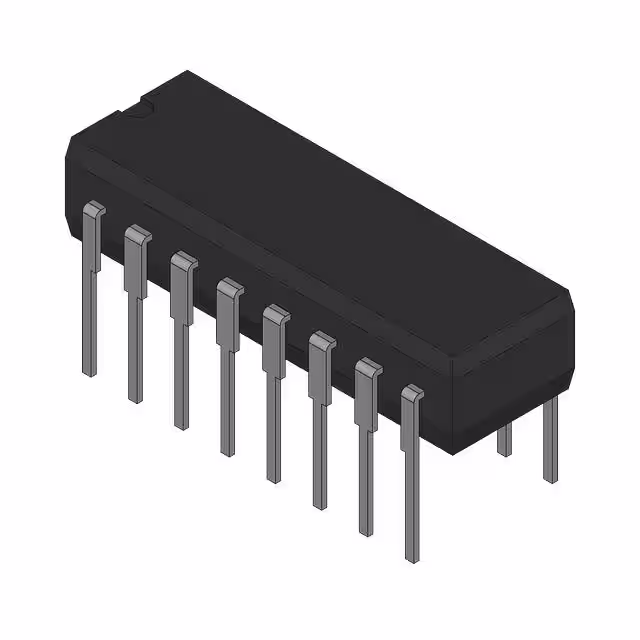

JM38510/05754BEA

Manufacturer :

Texas Instruments

Product Category :

Shift Registers

Operating Temperature (Max) :

125°C

Packaging :

Rail/Tube

Terminal Pitch :

2.54mm

Reach Compliance Code :

not_compliant

Supply Voltage-Min (Vsup) :

3V

Qualification Status :

Not Qualified

Terminal Position :

Dual

Width :

6.92mm

Output Polarity :

TRUE

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Prop. Delay@Nom-Sup :

160 ns

Number of Terminations :

16

fmax-Min :

8.5 MHz

Count Direction :

Right

Length :

19.56mm

Number of Functions :

1

Number of Bits :

8

Surface Mount :

No

Additional Feature :

OUTPUTS ALSO AVAILABLE AT 6TH AND 7TH STAGE OF THE SHIFT REGISTER ;ALSO OPERATES AS SISO

Schmitt Trigger :

No

Temperature Grade :

Military

Propagation Delay (tpd) :

320 ns

Screening Level :

MIL-M-38510 Class B

Supply Voltage-Max (Vsup) :

18V

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Load Capacitance :

50pF

Operating Temperature (Min) :

-55°C

JESD-30 Code :

R-GDIP-T16

Family :

4000/14000/40000

Logic IC Type :

PARALLEL IN SERIAL OUT

Trigger Type :

POSITIVE EDGE

Pin Count :

16

Power Supply Current-Max (ICC) :

0.3mA

Terminal Form :

THROUGH-HOLE

HTS Code :

8542.39.00.01

Height Seated (Max) :

5.08mm

Max Frequency@Nom-Sup :

3000000Hz

Max I(ol) :

0.0015 A

Supply Voltage :

5V
