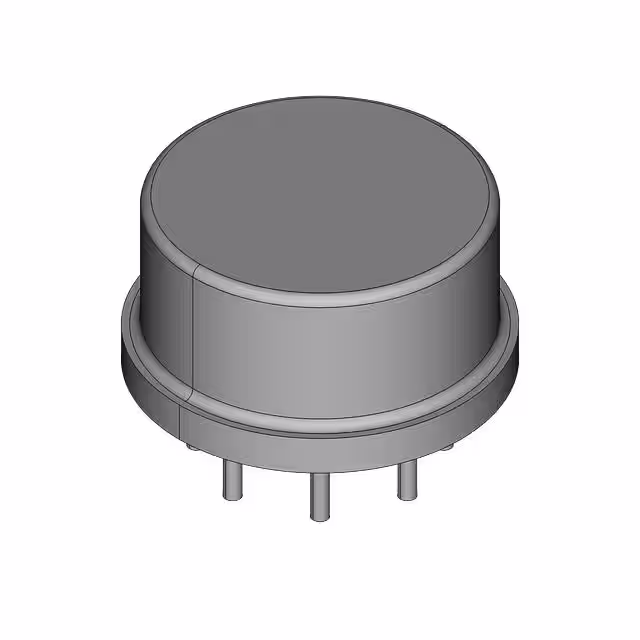

JM38510/11402BGA

Manufacturer :

Analog Devices, Inc.

Product Category :

Instrumentation, OP Amps, Buffer Amps

Slew Rate :

7.5(MIN)@±15V(V/us)

Dual Supply Voltage (Typ) :

±9/±12/±15/±18(V)

Voltage Gain in dB :

80(dB)

Shut Down Feature :

No

Maximum Input Offset Current :

0.00002@±20V

Technology :

BiFET

Single Supply Voltage (Min) :

Not Required(V)

Single Supply Voltage (Max) :

Not Required(V)

Unity Gain Bandwidth Product :

5

Power Dissipation :

1.2(W)

Dual Supply Voltage (Max) :

±20(V)

Package Type :

TO-99

Mounting :

Through Hole

Rail/Rail I/O Type :

No

Common Mode Rejection Ratio :

85(dB)

Power Supply Requirement :

Dual

Dual Supply Voltage (Min) :

±5(V)

Operating Temp Range :

-55C to 125C

Operating Temperature Classification :

Military

Power Supply Rejection Ratio :

85(dB)

Packaging :

Tray

Number of Elements :

1

Pin Count :

8

Input Bias Current :

3.5 nA

Supply Current :

7@±15V(mA)

Single Supply Voltage (Typ) :

Not Required(V)

Input Offset Voltage :

5(mV)

Rad Hardened :

No
