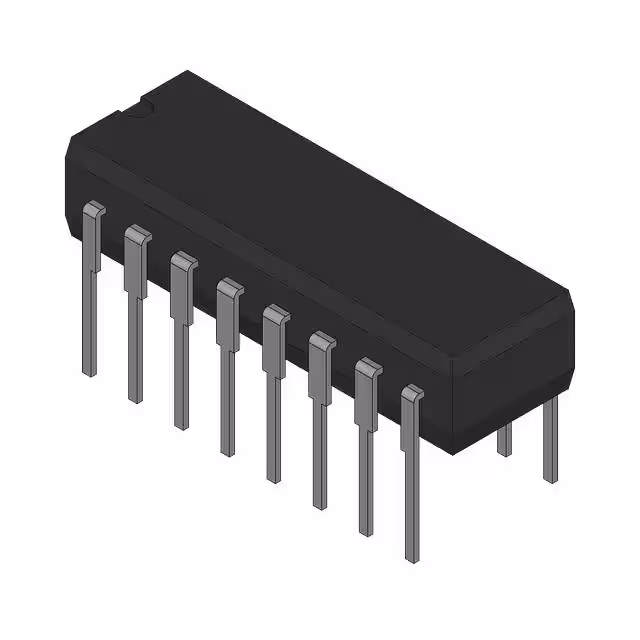

JM38510/30106BEA

Manufacturer :

Texas Instruments

Product Category :

Flip Flops

Surface Mount :

No

Temperature Grade :

Military

Propagation Delay (tpd) :

30 ns

Number of Functions :

1

JESD-30 Code :

R-GDIP-T16

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Logic IC Type :

D FLIP-FLOP

Factory Lead Time :

16 Weeks

fmax-Min :

30 MHz

Package :

Tube

Number of Bits :

6

Supply Voltage-Max (Vsup) :

5.5 V

Terminal Form :

THROUGH-HOLE

Qualification Status :

Not Qualified

Length :

19.56 mm

Package Shape :

RECTANGULAR

Series :

*

Terminal Position :

Dual

ECCN Code :

EAR99

Max I(ol) :

0.008 A

Seated Height-Max :

5.08 mm

Width :

7.62 mm

Terminal Pitch :

2.54 mm

Technology :

TTL

Packing Method :

Tube

Number of Terminals :

16

Trigger Type :

POSITIVE EDGE

HTS Code :

8542.39.00.01

Pin Count :

16

Manufacturer :

Texas

Output Polarity :

TRUE

Reach Compliance Code :

not_compliant

Supply Voltage-Min (Vsup) :

4.5 V

Brand Name :

Texas

Power Supply Current-Max (ICC) :

26 mA

Product Status :

Active

Screening Level :

MIL-M-38510 Class B

Family :

LS
