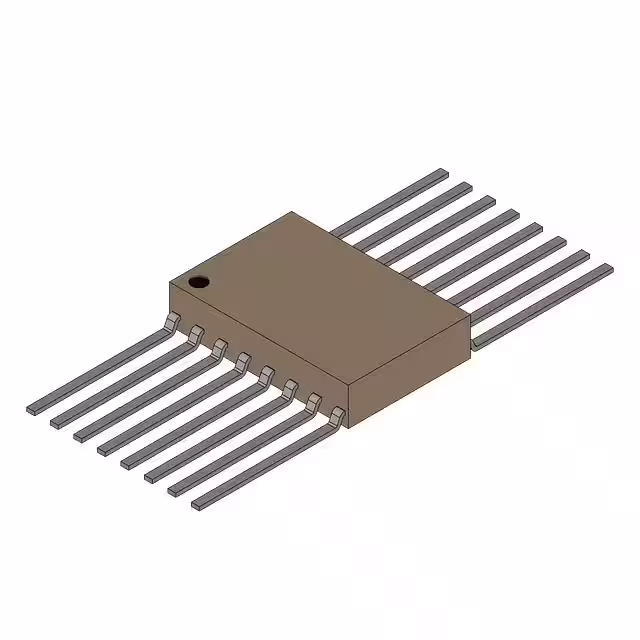

JM38510/30601BFA

Manufacturer :

Texas Instruments

Product Category :

Shift Registers

Logic IC Type :

PARALLEL IN PARALLEL OUT

Height :

2.03mm

Width :

6.73mm

Supply Voltage :

5V

Logic Function :

Shift Register

Number of Elements :

1

Number of Bits :

4

Output Type :

TTL

Max I(ol) :

0.008 A

fmax-Min :

25 MHz

Family :

LS

Prop. Delay@Nom-Sup :

26 ns

Max Frequency@Nom-Sup :

25000000Hz

Pin Count :

16

Max Operating Temperature :

125°C

Terminal Position :

Dual

Length :

10.3mm

Thickness :

1.65mm

Packaging :

Rail/Tube

Lead Free :

Contains Lead

Terminal Form :

Flat

RoHS Status :

RoHS Compliant

Additional Feature :

HOLD MODE; EXTERNAL CLOCK GATED WITH MODE CONTROL AND USED AS SHIFT CLOCK

Propagation Delay :

30 ns

Trigger Type :

POSITIVE EDGE

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Number of Pins :

16

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Temperature Grade :

Military

Schmitt Trigger :

No

Max Supply Voltage :

5.5V

Direction :

Bidirectional

Qualification Status :

Not Qualified

Min Operating Temperature :

-55°C

Output Polarity :

TRUE

Number of Functions :

1

Number of Terminations :

16

Mount :

Surface Mount

Power Supply Current-Max (ICC) :

23mA

Min Supply Voltage :

4.5V

Operating Supply Voltage :

5V

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)
