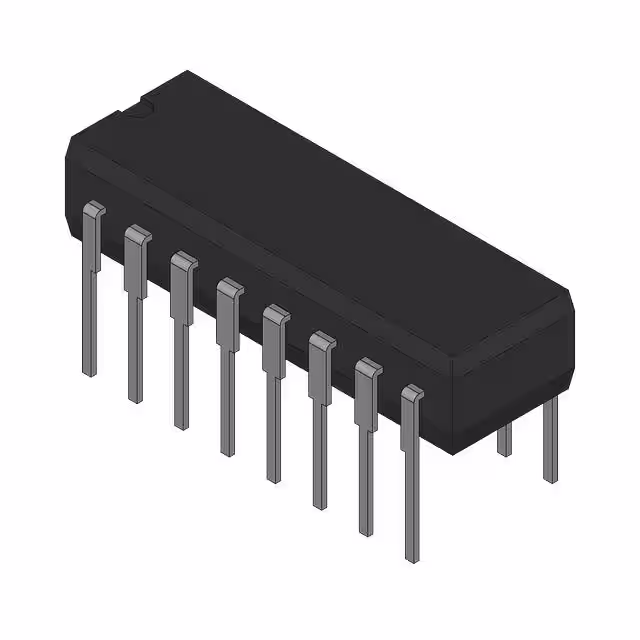

JM38510/30906BEA

Manufacturer :

Texas Instruments

Product Category :

Signal Switches, Multiplexers, Decoders

Surface Mount :

No

Number of Functions :

4

Lead Free :

Contains Lead

Pin Count :

16

Qualification Status :

Not Qualified

RoHS :

Compliant

Package :

Tube

Max I(ol) :

0.024 A

ECCN Code :

EAR99

Reach Compliance Code :

not_compliant

Output Polarity :

TRUE

Family :

LS

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Technology :

TTL

Product Status :

Active

Max Supply Voltage :

5.5 V

Series :

*

Number of Channels :

4

Number of Outputs :

4

Logic IC Type :

Multiplexer

Output Characteristics :

3-STATE

Thickness :

4.57 mm

Terminal Position :

Dual

Number of Pins :

16

Low Level Output Current :

12 mA

Propagation Delay (tpd) :

15 ns

HTS Code :

8542.39.00.01

JESD-30 Code :

R-GDIP-T16

Seated Height-Max :

5.08 mm

Length :

19.56 mm

Mount :

Through Hole

Terminal Pitch :

2.54 mm

Lifecycle Status :

Production (Last Updated: 6 days ago)

Width :

6.92 mm

Operating Supply Voltage :

5 V

Manufacturer :

Texas

Min Operating Temperature :

-55 °C

Logic Function :

Multiplexer, Mux

Number of Bits :

2

Package Shape :

RECTANGULAR

Terminal Form :

THROUGH-HOLE

Number of Terminals :

16

Power Supply Current-Max (ICC) :

19 mA

Height :

5.08 mm

Packaging :

Rail/Tube

Brand Name :

Texas

Factory Lead Time :

1 Week

Min Supply Voltage :

4.5 V

Supply Voltage-Min (Vsup) :

4.5 V

Max Operating Temperature :

125 °C

Supply Voltage-Max (Vsup) :

5.5 V

Power Dissipation :

55 mW

Number of Inputs :

8

Radiation Hardening :

No

High Level Output Current :

-1 mA

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 6 days ago)

Screening Level :

MIL-M-38510 Class B

Temperature Grade :

Military
