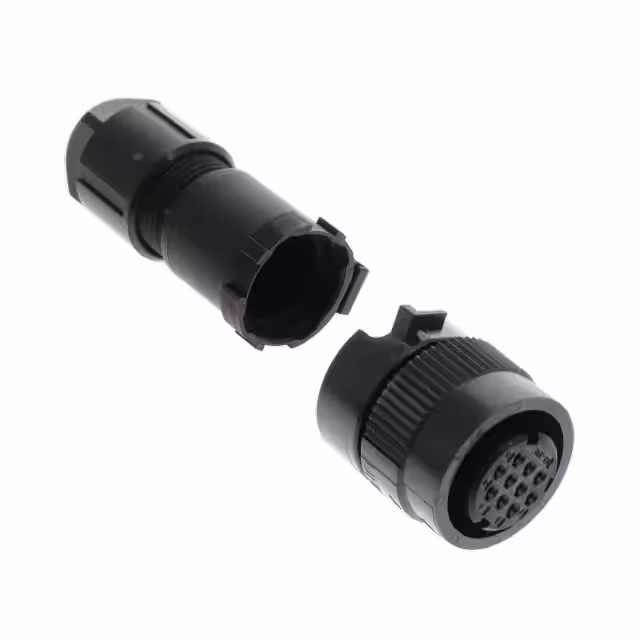

JN1VDS10SL2

Manufacturer :

JAE Electronics

Product Category :

Circular Connector Housings

Current Rating :

3 A

Insert Material :

Synthetic Resin

Contact Size :

22

Termination Style :

Crimp

Contact Gender :

Without Socket Contacts

Shell Size, MIL :

-

Mounting Type :

Free Hanging (In-Line)

Product Category :

Standard Circular Connector

IP Rating :

IP67

Shell Size :

-

Ingress Protection :

IP67 - Dust Tight, Waterproof

Housing Color :

Black

Note :

Contacts Not Included

Cable Diameter :

5.7 mm to 7.3 mm

Mounting Angle :

Straight

Package :

Bag

Housing Gender :

Male

Mounting Style :

Free Hanging

Features :

Backshell, Coupling Nut

Brand :

JAE Electronics

Subcategory :

Circular Connectors

Contact Plating :

-

Connector Type :

Plug Housing

Shell Size - Insert :

S

Manufacturer :

JAE Electronics

Series :

JN1V

Mating Cycles :

500 Cycle

Material Flammability Rating :

-

Orientation :

N (Normal)

Contact Material :

-

Mating Style :

Push-Pull

Contact Shape :

Circular

Housing Material :

Thermoplastic (TP)

Number of Positions :

10

Shell Finish :

-

Wire Gauge :

28 AWG to 20 AWG

Operating Temperature :

-20°C ~ 125°C

Base Product Number :

JN1VDS10

Product :

Housings

Product Type :

Standard Circular Connector

Contact Type :

Crimp

Accessory Type :

-

Mounting Feature :

-

Product Status :

Active

Type :

For Female Sockets

Shielding :

Unshielded

Fastening Type :

Push-Twist

RoHS :

Details

Shell Material :

Synthetic Resin

Includes :

-

Shell Style :

PLUG

Color :

Black
