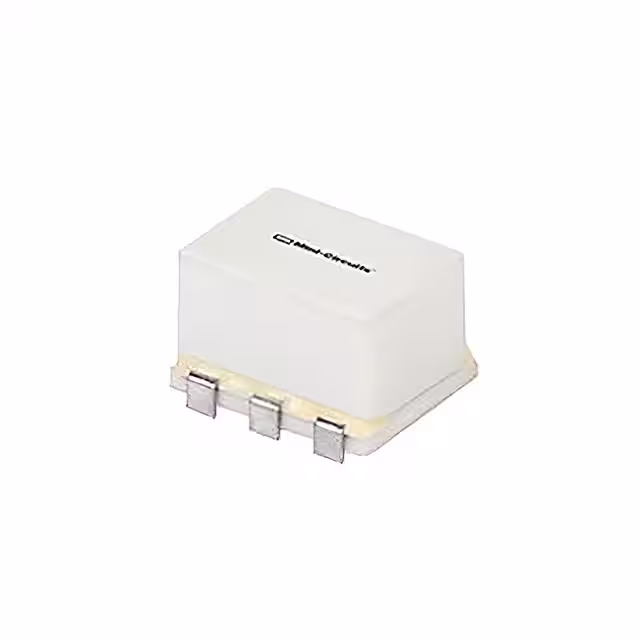

JPS-3-1+

Manufacturer :

Mini-Circuits

Product Category :

RF Power Dividers/Splitters

Reach Compliance Code :

not_compliant

Type :

3-Way Core and Wire Power Splitter

Size / Dimension :

-

RF/Microwave Device Type :

COMBINER

Frequency :

5 MHz ~ 300 MHz

Product Type :

Signal Conditioning

Mounting :

SMD/SMT

Product Status :

Active

Bandwidth :

225 MHz

RoHS :

Details

Termination Style :

SMD/SMT

Additional Feature :

ISOLATION-MIN (DB):20

Operating Frequency-Max :

300 MHz

Package :

Digi-Reel?

Subcategory :

Filters

Terminal Finish :

Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier

Insertion Loss :

0.5dB

Minimum Operating Temperature :

- 40 C

Series :

-

Characteristic Impedance :

50 Ω

ECCN Code :

EAR99

Specifications :

Isolation (Min) 25dB, 6° Imbalance (Max)

Input Power-Max (CW) :

30 dBm

Pbfree Code :

No

Product :

Splitter Filter Modules

Operating Frequency-Min :

5 MHz

JESD-609 Code :

e0

Construction :

COMPONENT

Product Category :

Signal Conditioning

Brand :

Mini-Circuits

Maximum Operating Temperature :

+ 85 C

Impedance :

50 Ohms

Frequency Range :

5 MHz to 300 MHz

Package / Case :

6-SMD, J-Lead

Manufacturer :

Mini-Circuits

Packaging :

MouseReel

VSWR-Max :

1.16
