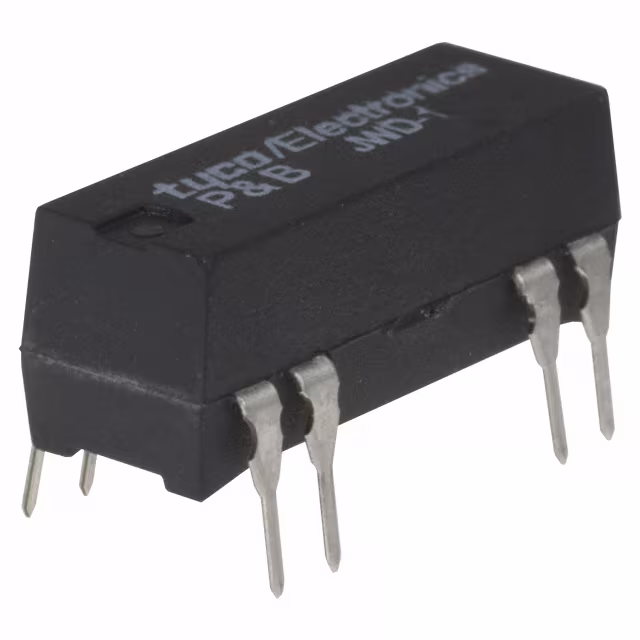

JWD-172-162

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Reed Relays

Color :

Silver

Coil Current :

11.2mA

Coil Operate Voltage(DC) :

19.2 V

Seal Rating :

-

Insulation Resistance :

100000000 Ω

Contact Resistance :

200 mΩ

Operating Temperature :

-35°C ~ 85°C

Storage/Refrigeration Temperature :

40°F ~ 80°F (4°C ~ 26°C)

Reference Standard :

CSA; UL

Dielectric Strength Between Open Contacts :

175 Vrms

Product Type :

Reed Relays

Body Length or Diameter :

19.56 mm

Coil Type :

Non Latching

Shelf Life :

24 Months

Electrical Life :

1000000 Cycle(s)

Coil Voltage :

24VDC

Adhesive :

Acrylic

Relay Action :

Momentary

Dielectric Strength Between Coil and Contacts :

500 Vrms

Mounting Feature :

THROUGH HOLE-STRAIGHT MOUNT

Number of Terminals :

8

Reach Compliance Code :

Compliant

Turn Off Voltage (Min) :

2 VDC

Coil Voltage(DC)-Max :

24 V

Contact/Output Supply Type :

DC

Termination Style :

PC Pin

Physical Dimension :

19.56mm X 7.62mm X 8mm

Width :

-

Coil Power :

268 mW

Usage :

Insulating, Moisture Sealing

RoHS :

Details

Body Height :

8 mm

Temperature Range :

-40°F ~ 200°F (-40°C ~ 93°C)

Manufacturer :

TE Connectivity

Coil Resistance :

2.15 kOhms

Relay Type :

DRY REED RELAY

Thickness :

0.0140 (14.0 mils, 0.356mm)

Relay Function :

SPDT

Turn On Voltage (Max) :

19.2 VDC

Backing, Carrier :

Aluminum Foil

Product Status :

Active

Contact Voltage(DC)-Max :

28 V

Weight :

2.3 g

Operate Time :

1.5ms

Packaging :

Box or Tray

Coil Suppression Diode :

yes

Package :

Box

Series :

Venture Tape™ UL181B-FX

Base Product Number :

JWD-172

Thickness - Adhesive :

0.0120 (12.0 mils, 0.305mm)

Contact Rating (Current) :

500mA

Length :

100 (30.5m) 33.3 yds

Terminal Length :

0.0033 inch

Input Switching Control Type :

Random

Termination Type :

Solder

Body Breadth :

7.62 mm

Contact Form :

SPDT (1 Form C)

Brand :

TE Connectivity / AMP

Subcategory :

Relays

Coil Release Voltage(DC) :

2 V

Thickness - Backing, Carrier :

0.0020 (2.0 mils, 0.051mm)

PCB Hole Count :

8

Product Category :

Reed Relays

End Contact Material :

Ruthenium

Mounting Type :

Through Hole

Relay Form :

1 Form C

Must Operate Voltage :

19.2 VDC

Shelf Life Start :

Date of Manufacture

Tape Type :

Mastic Sealing Tape

Switching Voltage :

28VDC - Max

Contact Material :

Ruthenium (Ru)

Must Release Voltage :

2 VDC

Contact Current(DC)-Max :

0.5 A

HTS Code :

8536.41.00.20

Additional Feature :

WITH SUPPRESSION DIODE

Coil Current(DC)-Max :

0.011 A

Coil/Input Supply Type :

DC

Sealing :

EPOXY TERMINAL SEALED

Release Time :

3ms

ECCN Code :

EAR99

Features :

Diode

Surface Mount :

No
