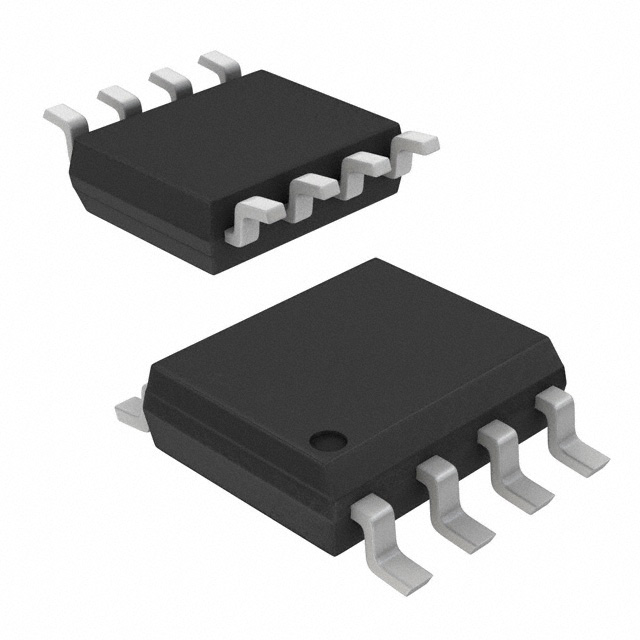

KA258D

Manufacturer :

onsemi

Product Category :

Instrumentation, OP Amps, Buffer Amps

RoHS Status :

RoHS Compliant

Peak Reflow Temperature (Cel) :

260

Min Operating Temperature :

-25°C

ECCN Code :

EAR99

Max Operating Temperature :

85°C

Terminal Position :

Dual

Min Supply Voltage :

3V

Number of Elements :

2

Operating Supply Current :

800μA

Terminal Finish :

Matte Tin (Sn)

Output Current per Channel :

30mA

Architecture :

VOLTAGE-FEEDBACK

Frequency Compensation :

yes

Common Mode Rejection Ratio :

70 dB

JESD-609 Code :

e3

Mount :

Surface Mount

Amplifier Type :

Operational Amplifier

Terminal Form :

Gull wing

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Supply Voltage :

5V

Current - Input Bias :

150nA

Low-Offset :

No

Input Offset Voltage (Vos) :

5mV

Power Supplies :

+-1.5/+-15/3/30V

Pin Count :

8

Bias Current-Max (IIB) @25C :

0.15μA

Average Bias Current-Max (IIB) :

0.3μA

Temperature Grade :

Other

Min Dual Supply Voltage :

1.5V

Max Supply Voltage :

32V

Operating Supply Voltage :

15V

Qualification Status :

Not Qualified

Voltage Gain :

100dB

Number of Terminations :

8

Number of Functions :

2

Width :

3.95mm

Power Supply Rejection Ratio (PSRR) :

65dB

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Nominal Supply Current :

1.2mA

Lead Free :

Lead Free

Package / Case :

SOIC

Max Dual Supply Voltage :

16V

Number of Pins :

8
