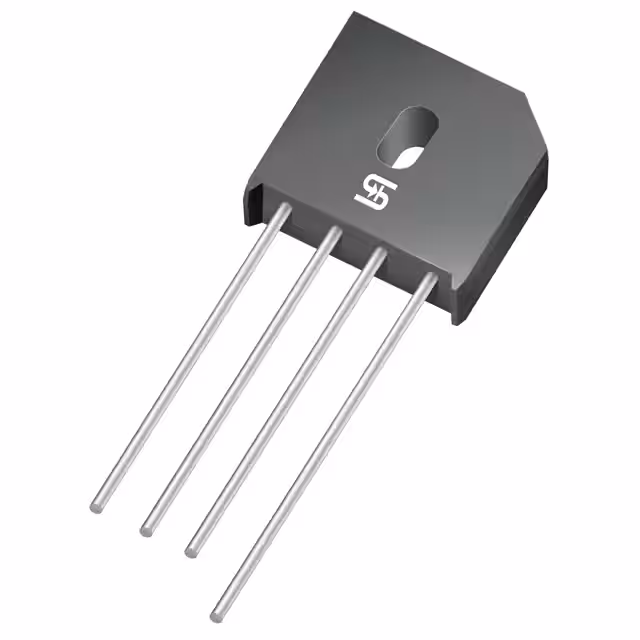

KBU802G

Manufacturer :

Taiwan Semiconductor

Product Category :

Diodes - Bridge Rectifiers

Diode Type :

BRIDGE RECTIFIER DIODE

Additional Feature :

UL RECOGNIZED

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Terminal Form :

Wire

Operating Temperature :

-55°C ~ 150°C (TJ)

Configuration :

BRIDGE, 4 ELEMENTS

Package Shape :

RECTANGULAR

Product Status :

Obsolete

Voltage - Forward (Vf) (Max) @ If :

1 V @ 4 A

Reach Compliance Code :

Compliant

Mounting Type :

Through Hole

Number of Phases :

1

Supplier Device Package :

KBU

Voltage - Peak Reverse (Max) :

200 V

Diode Element Material :

SILICON

Technology :

Standard

Non-rep Pk Forward Current-Max :

200 A

Surface Mount :

No

JESD-30 Code :

R-PSFM-W4

Rep Pk Reverse Voltage-Max :

200 V

Output Current-Max :

8 A

Series :

-

Breakdown Voltage-Min :

200 V

Package :

Bulk

Current - Average Rectified (Io) :

8 A

Package / Case :

4-SIP, KBU

Number of Terminals :

4

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Number of Elements :

4

Terminal Position :

Single

Current - Reverse Leakage @ Vr :

10 µA @ 200 V
